Description

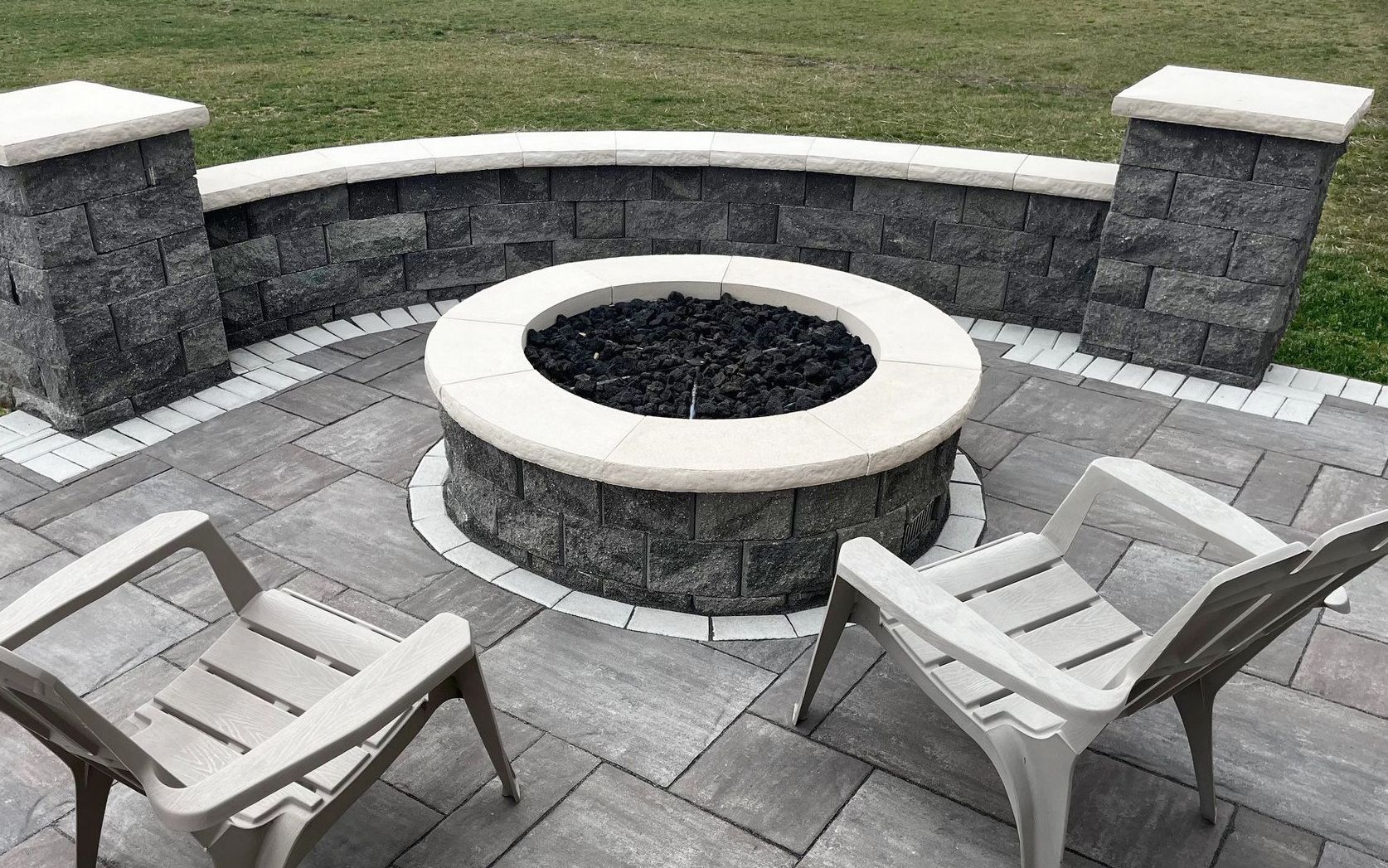

The AB Courtyard® Collection Fire Pit creates a warm, inviting atmosphere for any outdoor space. Designed for durability and easy installation, this stylish fire pit is perfect for gatherings, adding a cozy touch to backyard entertaining. Its timeless design complements any landscape, making it a must-have for year-round enjoyment.
Design Files

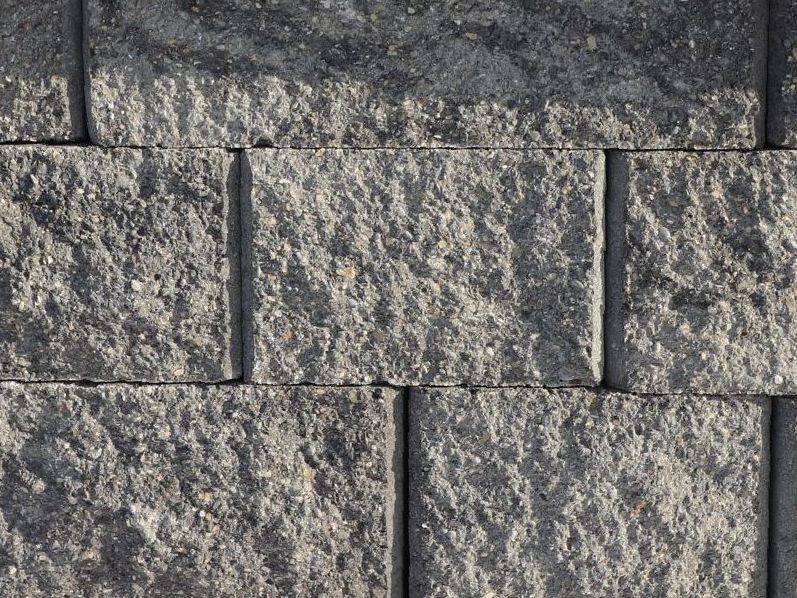

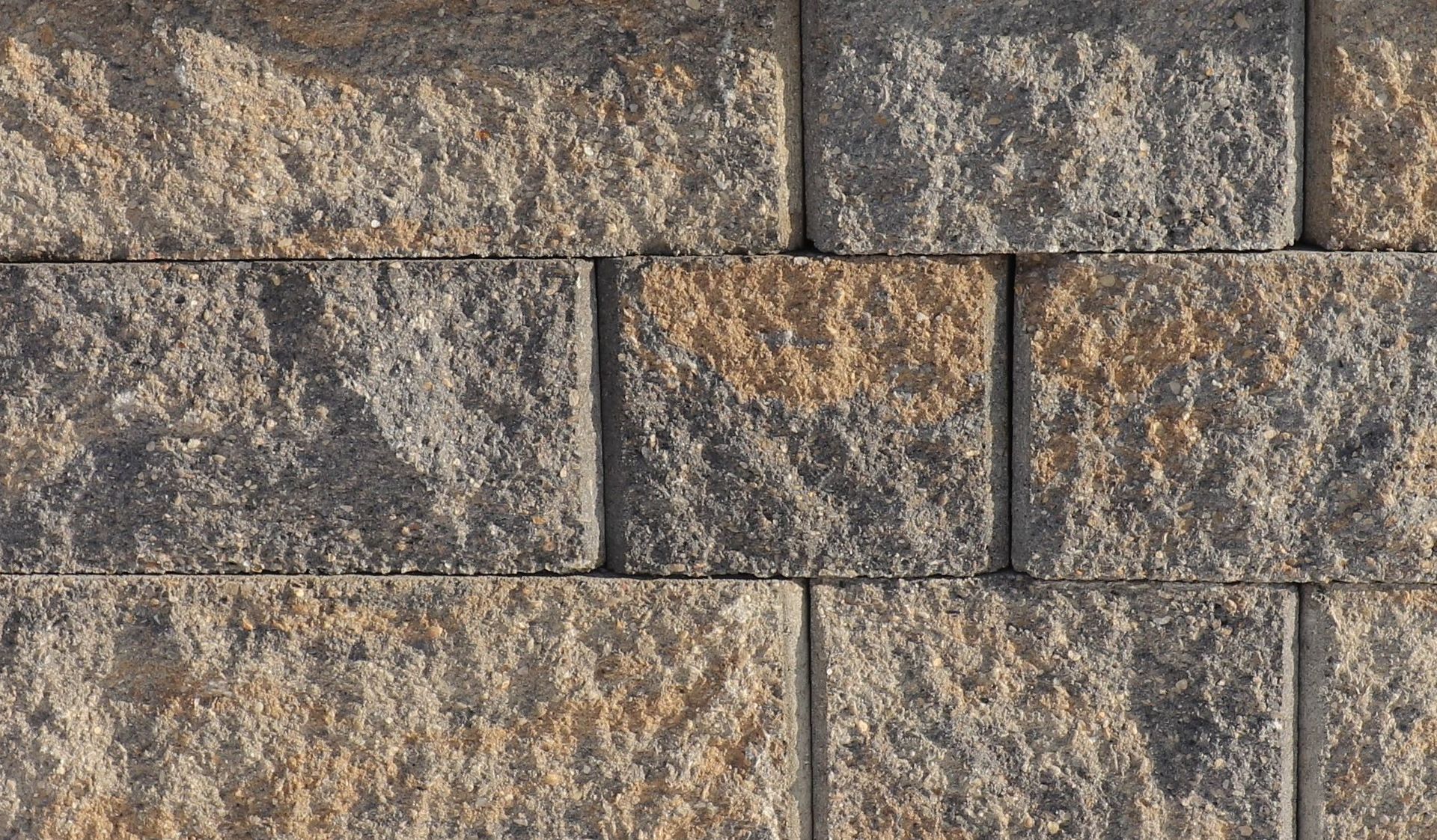

Colors
Don't forget
Your Fire
Pit Caps!
Keep your fire pit protected from the elements while adding a polished, finished look.

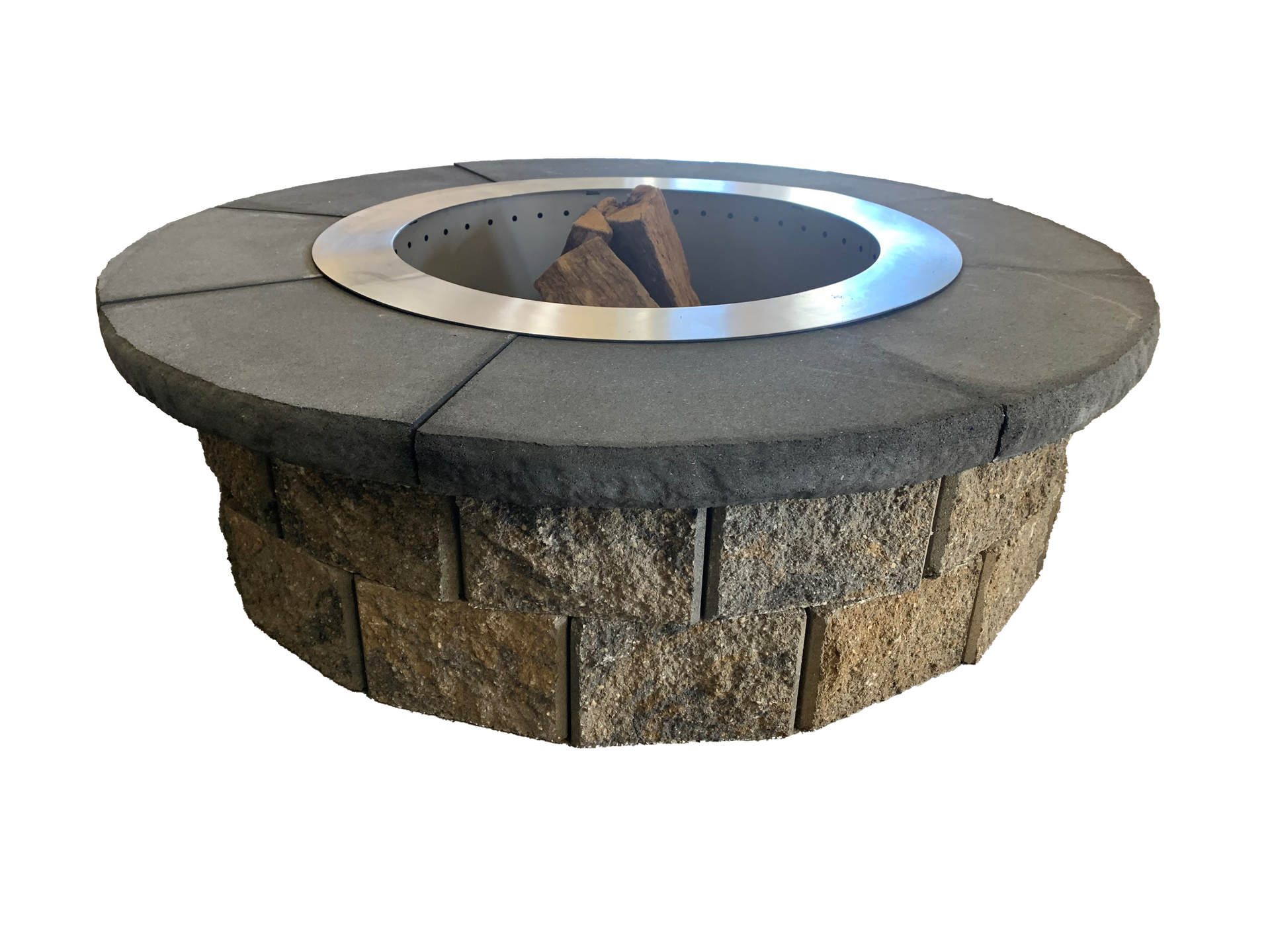

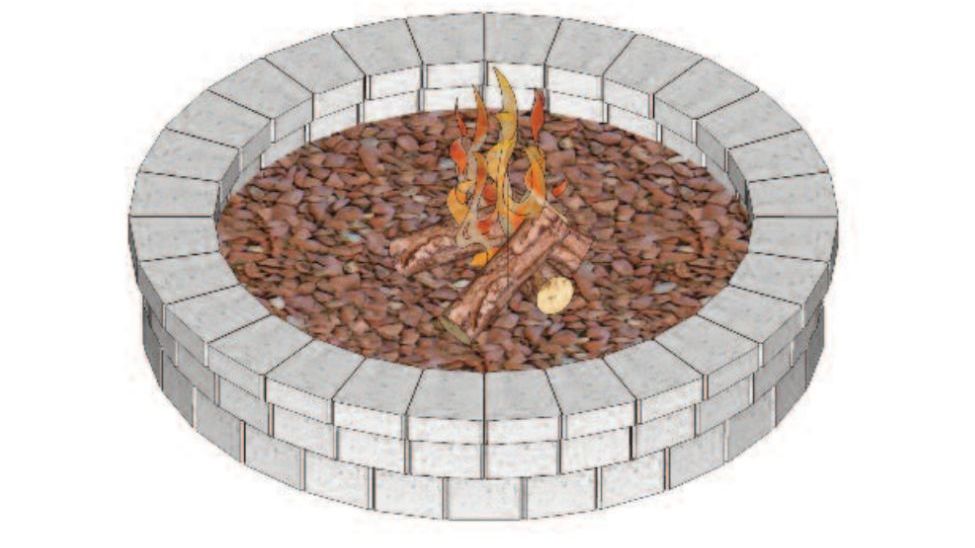

Round Outdoor Fire Pit
Materials Required for This Project
- 56 AB York
- 28 Wall Caps
- flexible concrete adhesive
- 8 bags of crushed rock - 50 lbs/ each
- 6 bags of decorative rock (optional) - 50 lbs/ each
- 1 Metal fire ring (optional)
- flexible concrete adhesive
These are the exact numbers based on installation.
We would recommend purchasing additional block to accommodate
for design changes, shipping or breakage
Tools You Will Need
- Shovel
- Tape measure
- Hand compactor
- Level
- hammer & chisel
- gloves
- tape measure
- safety glasses
- Wheel barrow
- A 2 X 4 for leveling

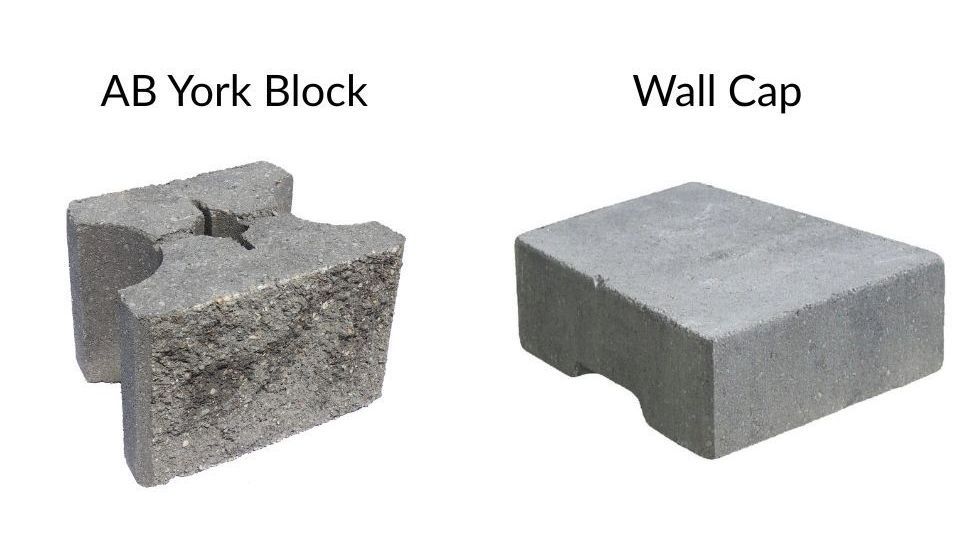

Blocks Needed

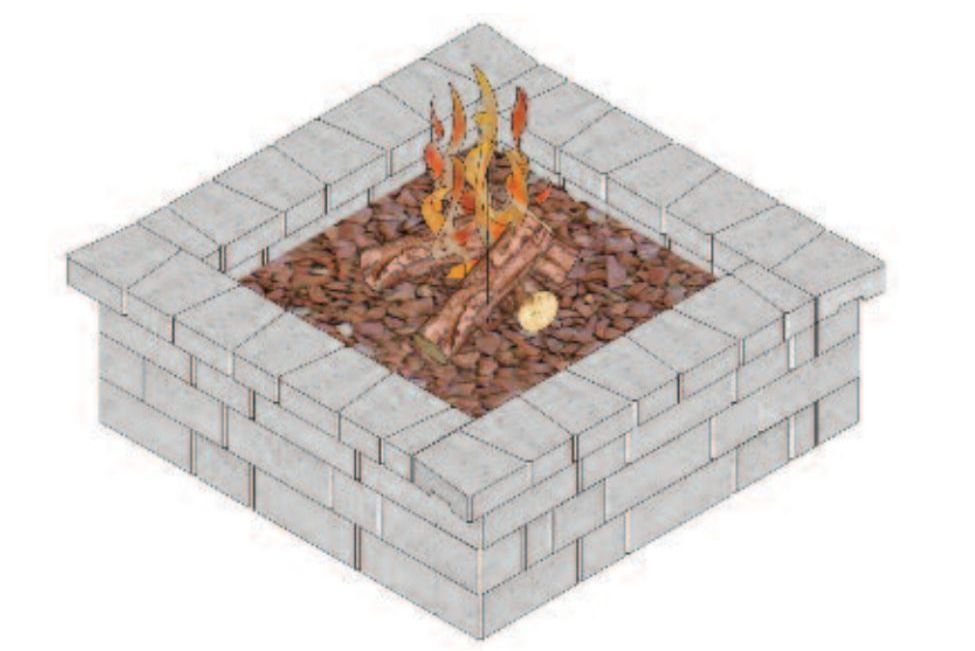

Square Outdoor Fire Pit
Materials Required for This Project
- 15 AB Dublin (Total)
- 6 AB Dublin cut at raised ring
- 24 AB York
- 12 Corner blocks
- 26 Wall Caps
- 1 Metal fire ring (optional)
- flexible concrete adhesive
- 6 bags of decorative rock (optional) - 50 lbs
These are the exact numbers based on installation.
We would recommend purchasing additional block to accommodate
for design changes, shipping or breakage
Tools You Will Need
- Saw with a diamond blade
- Level
- Square
- Hammer & chisel
- Gloves
- Tape measure
- Safety glasses

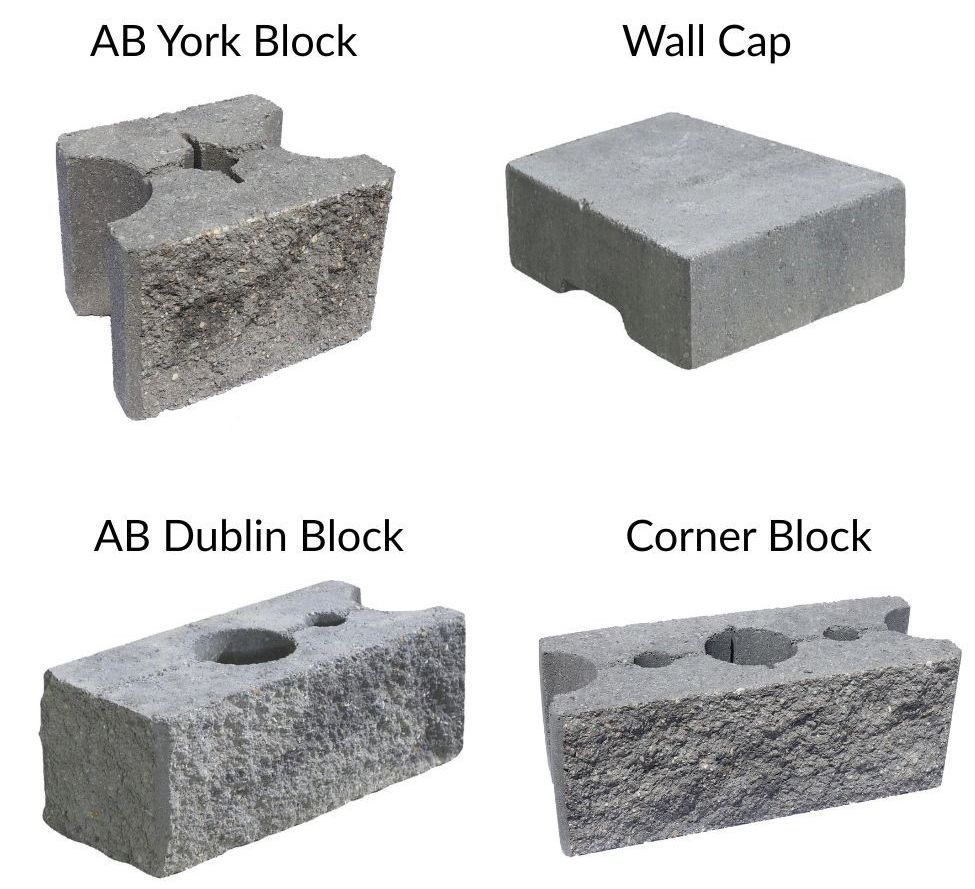

Blocks Needed
What's in the Package?
1.) Burner System
Powered by the Firegear FPB-39DBS36MT-N Burner System, this gas burner system delivers effortless, consistent flames for the perfect fire pit!
2.) Flexframe
3-pieces of 304 stainless steel set fills the gap between the inner opening and burner, ensuring easy installation and maintenance.
3.) Control Panel
The SRW Control Panel offers a convenient way to install key valves in landscape block. Made of stainless steel with a support lintel.
4.) Vent Kit
Paver vents provide 18 sq. in. of cross ventilation, reducing cuts. Sold as a pair, with a support lintel. All stainless steel.
5.) Media
Includes 1"-2" black lava rock, designed to cover the burner and create an ideal air-to-gas mix for optimal flame size and appearance.
Package Accessories
LP Conversion Kit
Model: OAS-LPK 12
Required if burner is being connected to a dedicated liquid propane line (75 lb tank or larger).
E-Stop Gas Timer
Mechanical timer with manual emergency shut-off. Available in 1 hour or 2.5 hour countdown.
MSI-BSMTI
Manual spark ignition kit for FPB "MT" Match Throw Systems featuring the burning spur.
Windshield
Model: GWS-48R
Outer diameter: 48"
1/4" thick (5mm)
ESTOP-CP-KIT
Designed for use with architectural block/ pavers. Expands from 8" to 12" wide to fit various block sizes.
Flex & Fittings
Whistle-free flex lines and fittings are available to connect valve to incoming gas line.
Flex: T200-9898-46
Fittings: UI-8D-S + U3-8
