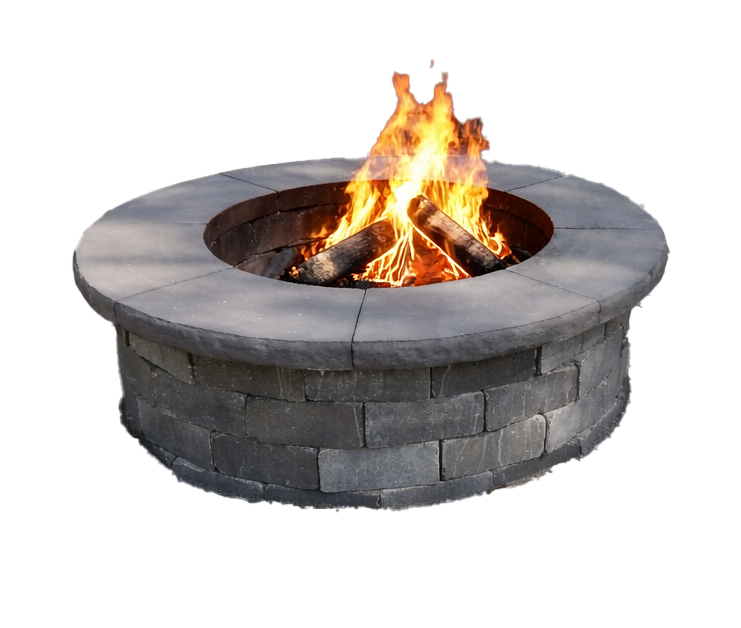

Bedford Tumbled™
Fire Pit Kit
Description
The Bedford Tumbled™ Fire Pit Kit combines rustic charm with a refined finish, making it the perfect centerpiece for any outdoor space. Each stone is tumbled for a naturally weathered look while maintaining a clean, professional appearance. Designed for durability and easy installation, this fire pit kit creates a warm and inviting atmosphere, ideal for backyard gatherings. Enjoy the perfect blend of character and sophistication with Bedford Tumbled™.
Key Features:
- Easy-to-install, all-in-one kit
- Durable, weather-resistant construction
- Classic design complements any outdoor space
- Ideal for entertaining or relaxing by the fire
- Gas or wood burning solutions.
Fire Pit Kit includes :
(Appropraite for fire pit size)
- Bedford Tumbled Radius units
- Galvanized steel ring
Adhesive sold separately.
🔥 Upgrade Your Look: Add RockCast caps (recommended for gas fire pits).
🔥 Go Gas: Firegear Outdoors gas burners available for a hassle-free fire experience.
Design Files
30" Set Up & Instructions .pdf
42" Set Up & Instructions .pdf
Firegear Outdoors Fire Pit Flat Pan Burner Installation Instructions.pdf
How Much Media Should I Use Guide.pdf
30" Bedford Tumbled Fire Pit Gas Burner Package.pdf
42" Bedford Tumbled Fire Pit Gas Burner Package.pdf
30" Bedford Tumbled Fire Pit Pro Gas Burner Package.pdf
30" RockCast Fire Pit Cap Assembly.pdf
38" RockCast Fire Pit Cap Assembly.pdf
42" RockCast Fire Pit Cap Assembly.pdf
Spec Sheets
Colors
Sizes

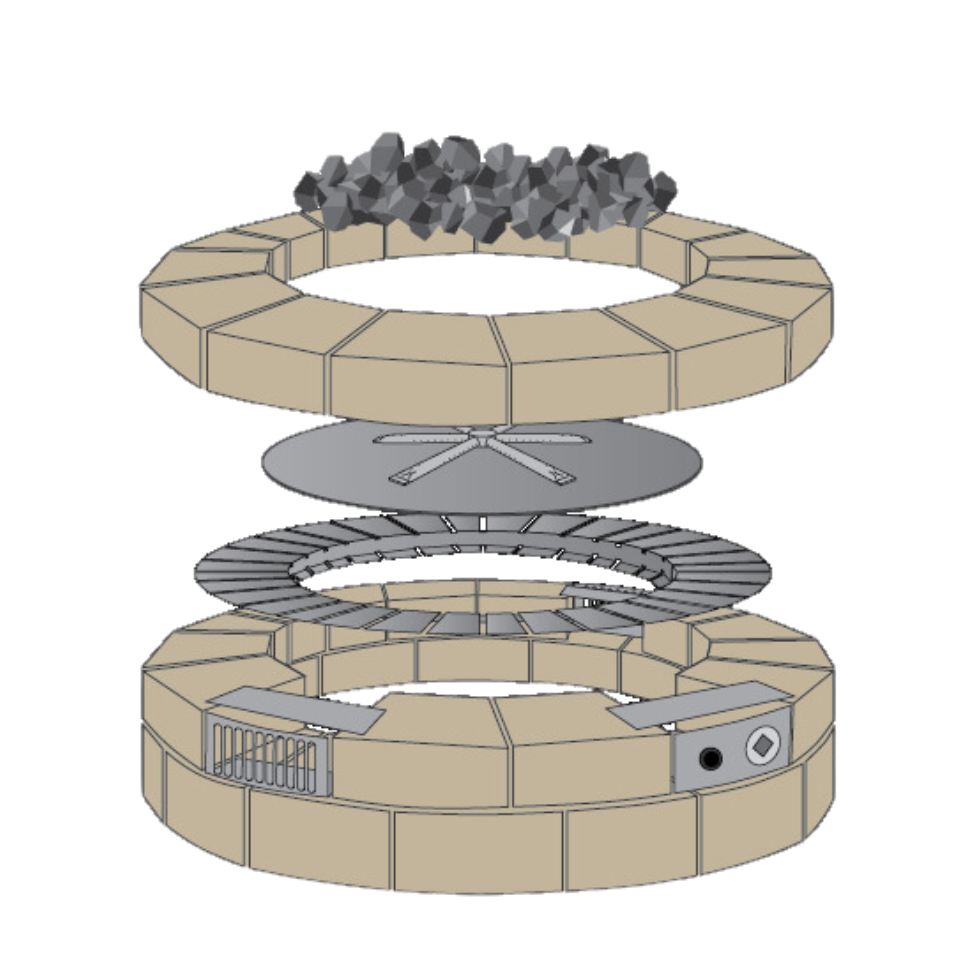

Package Contains

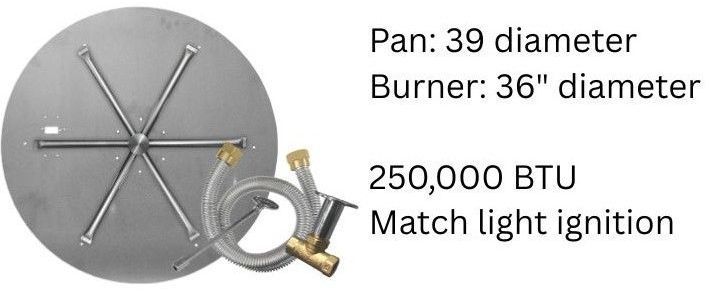

1.) Burner System
Powered by the Firegear FPB-39DBS36MT-N Burner System, this gas burner system delivers effortless, consistent flames for the perfect fire pit!

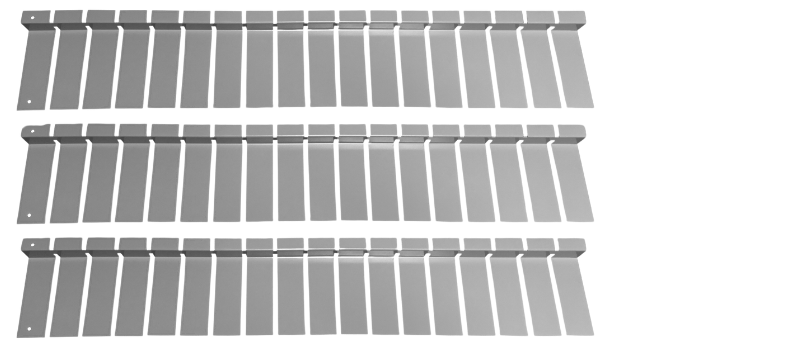

2.) Flexframe
3-pieces of 304 stainless steel set fills the gap between the inner opening and burner, ensuring easy installation and maintenance.
3.) Control Panel
The SRW Control Panel offers a convenient way to install key valves in landscape block. Made of stainless steel with a support lintel.

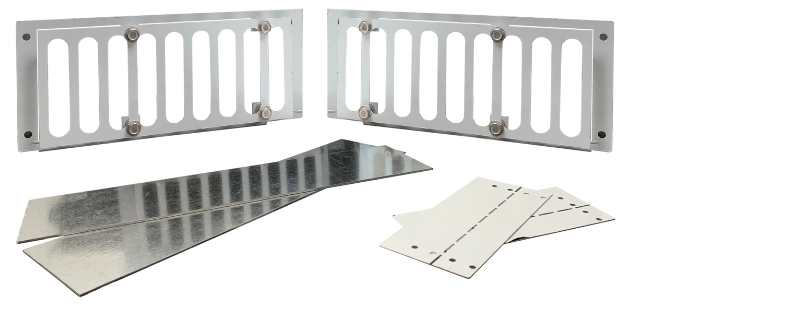

4.) Vent Kit
Paver vents provide 18 sq. in. of cross ventilation, reducing cuts. Sold as a pair, with a support lintel. All stainless steel.

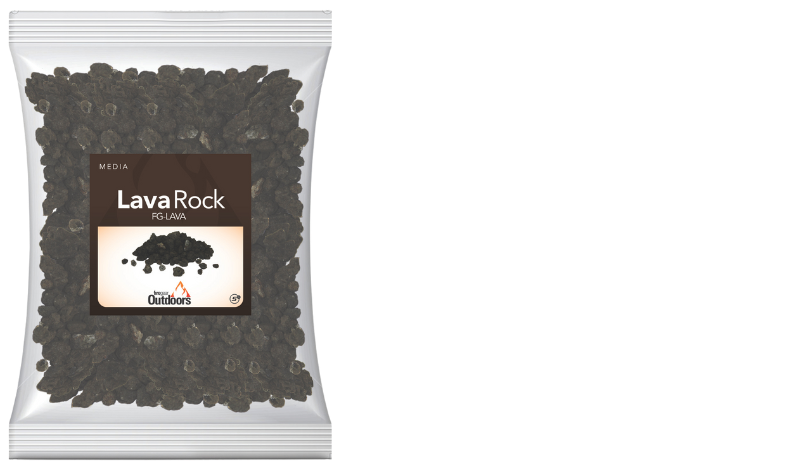

5.) Media
Includes 1"-2" black lava rock, designed to cover the burner and create an ideal air-to-gas mix for optimal flame size and appearance.
Package Accessories
LP Conversion Kit
Model: OAS-LPK 31
Required if burner is being connected to a dedicated liquid propane line (75 lb tank or larger).
E-Stop Gas Timer
Mechanical timer with manual emergency shut-off. Available in 1 hour or 2.5 hour countdown.
MSI-BSMTI
Manual spark ignition kit for FPB "MT" Match Throw Systems featuring the burning spur.
Windshield
Model: GWS-36R
Outer diameter: 36"
1/4" thick (5mm)
ESTOP-CP-KIT
Designed for use with architectural block/ pavers. Expands from 8" to 12" wide to fit various block sizes.
Flex & Fittings
Whistle-free flex lines and fittings are available to connect valve to incoming gas line.
Flex: T200-9898-46
Fittings: UI-8D-S + U3-8

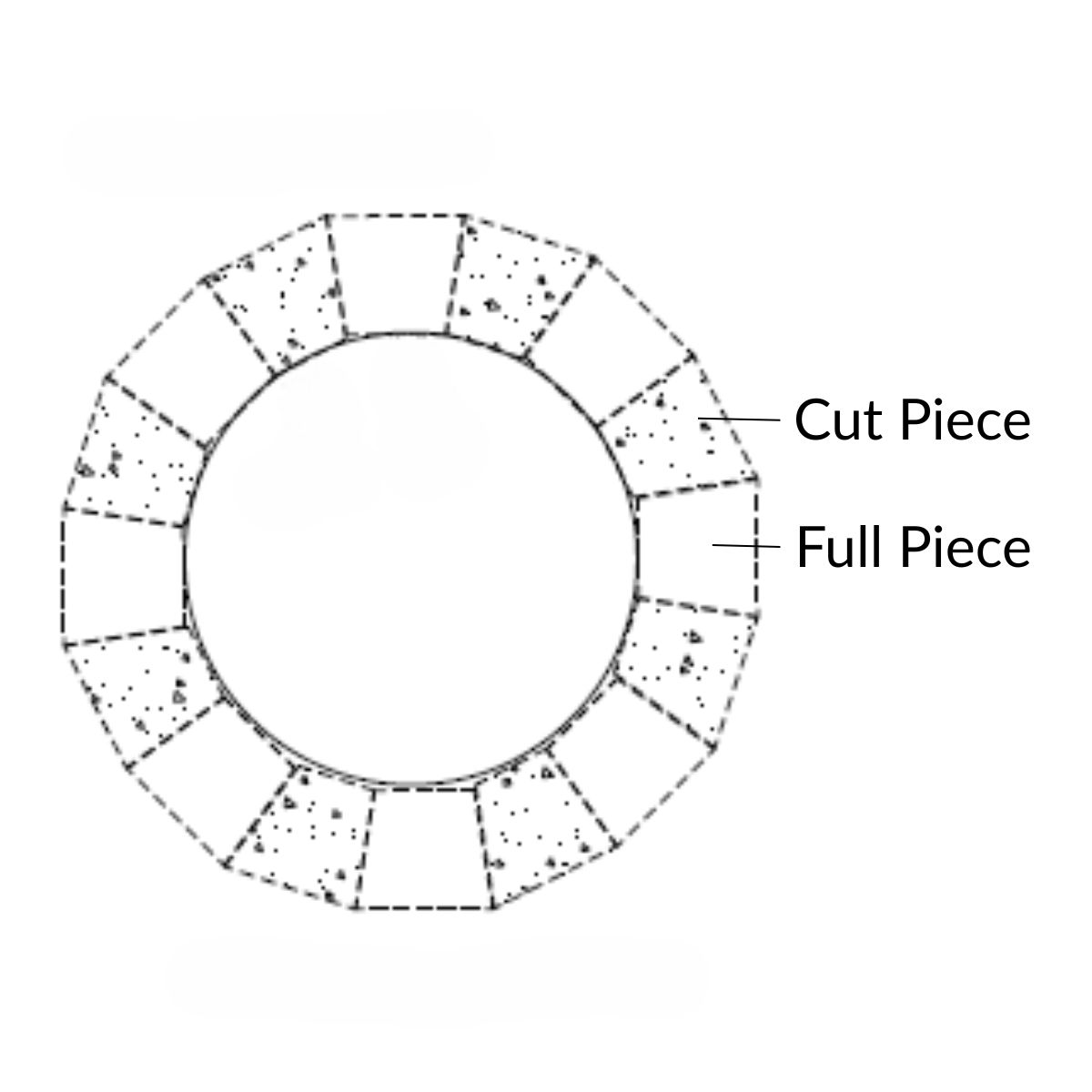

Don't forget
Your Fire
Pit Caps!
Keep your fire pit protected from the elements while adding a polished, finished look.
Packaging
| BEDFORD TUMBLED™ FIRE PIT KIT | Kit Includes | Dimensions | Pcs/ Pallet | Weight/ Full Pallet | Stock Colors |
|---|---|---|---|---|---|

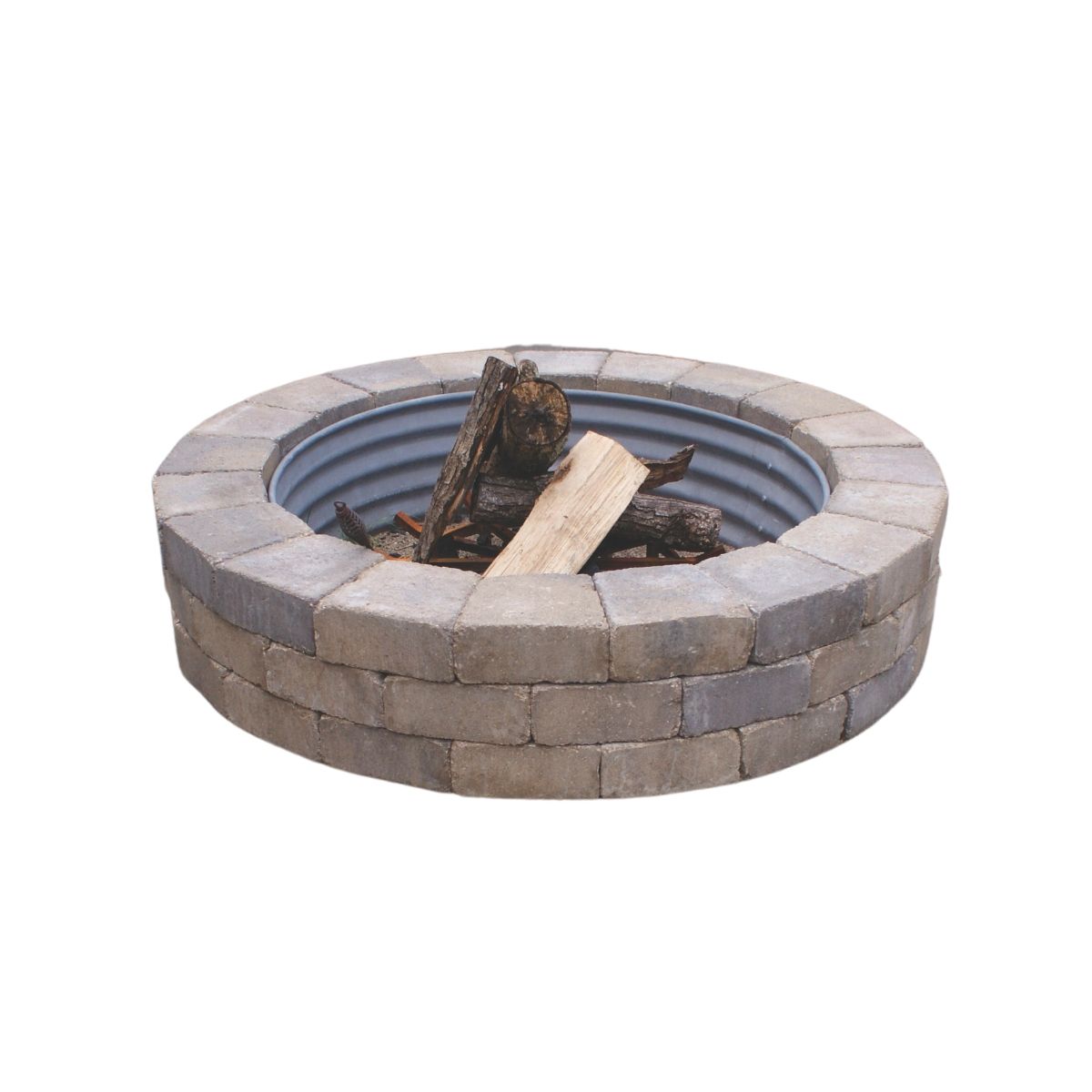

| 30" Round Fire Pit Kit | 64 Bedford Tumbled™ units | 30" inside diameter | 1 Kit | 1,215 LBS | Granite, Hickory Blend, Sand |
| Galvanized steel liner | 46" outside diameter | ||||
| 16" tall (4 courses in kit) | |||||

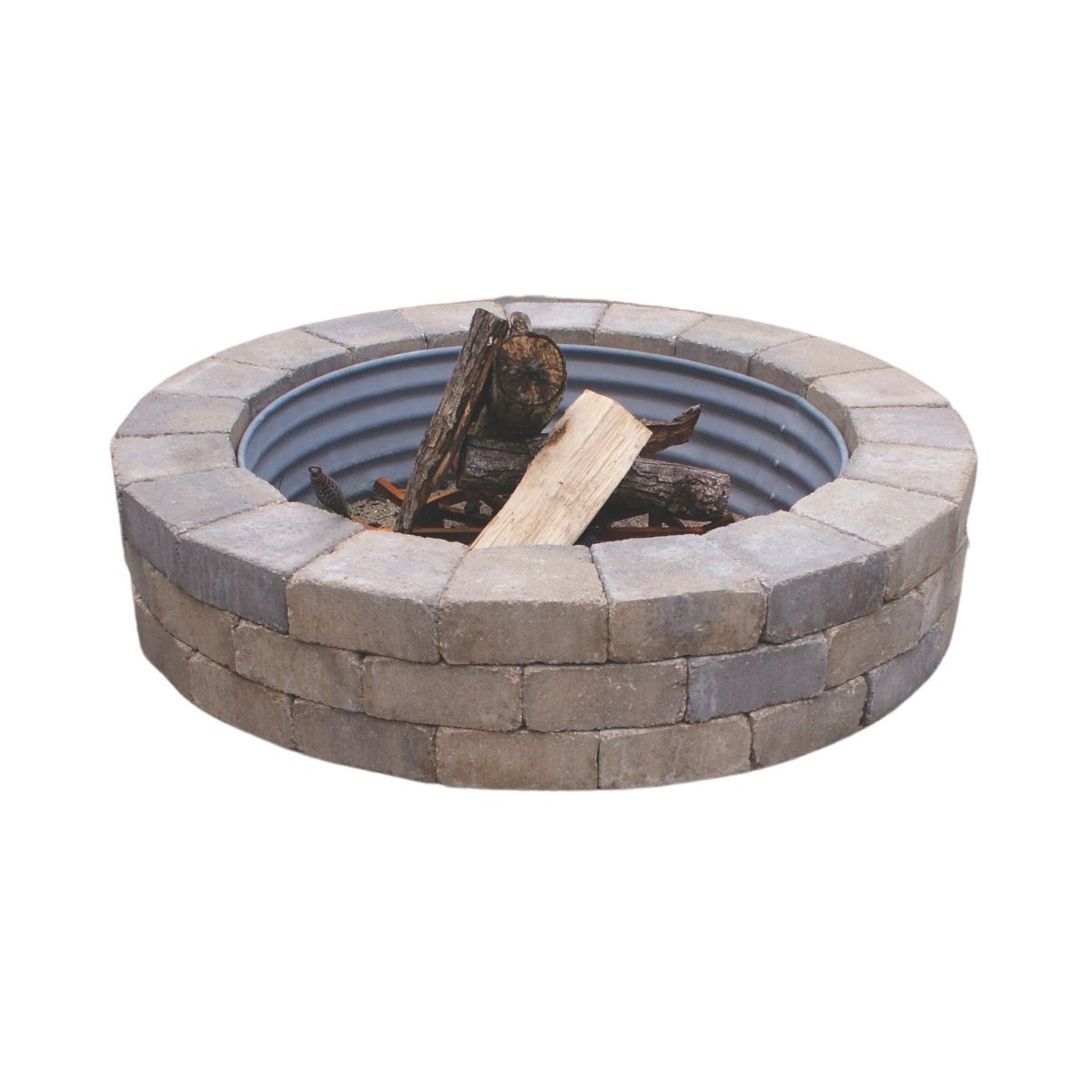

| 42" Round Fire Pit Kit | 80 Bedford Tumbled™ units | 42" inside diameter | 1 Kit | 1,625 LBS | Granite, Hickory Blend, Sand |
| Galvanized steel liner | 58" outside diameter | ||||
| 16" tall (4 courses in kit) |
