Description

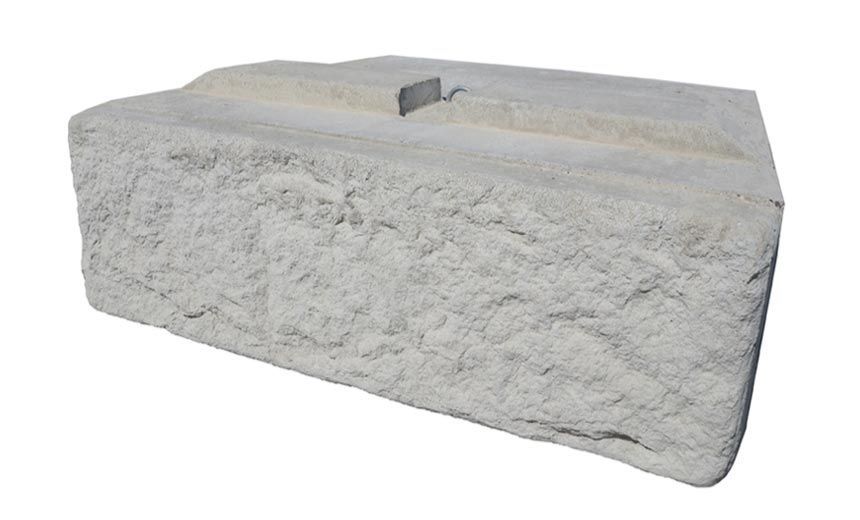

Recon is a trusted gravity retaining wall system, ideal for challenging sites. With a base covering 5 1/3 square feet, it offers a natural stone look and a larger scale unmatched by smaller products. Engineers appreciate its mass, density, and stable footprint, making it a reliable choice for durable wall designs.
Features:
- Block Specifications
- Block face: 5.33 sq. ft. or 48” x 16”
- Available Depths: 24”, 39”, 45”, 60”, 66″, 72″, 78″, 84″
- Mass: 1,000 – 4,100 lbs per block
- Concrete: Minimum of 4,000 psi
- Lifting Devise: lifting insert loop
- Turing Radius: Approximately 15 feet (varies with wall height)
- Retaining Wall Batter: 3.6 degrees automatically built into the system. Can be adjusted to 7.2 degrees with the use of field-installed spacers.

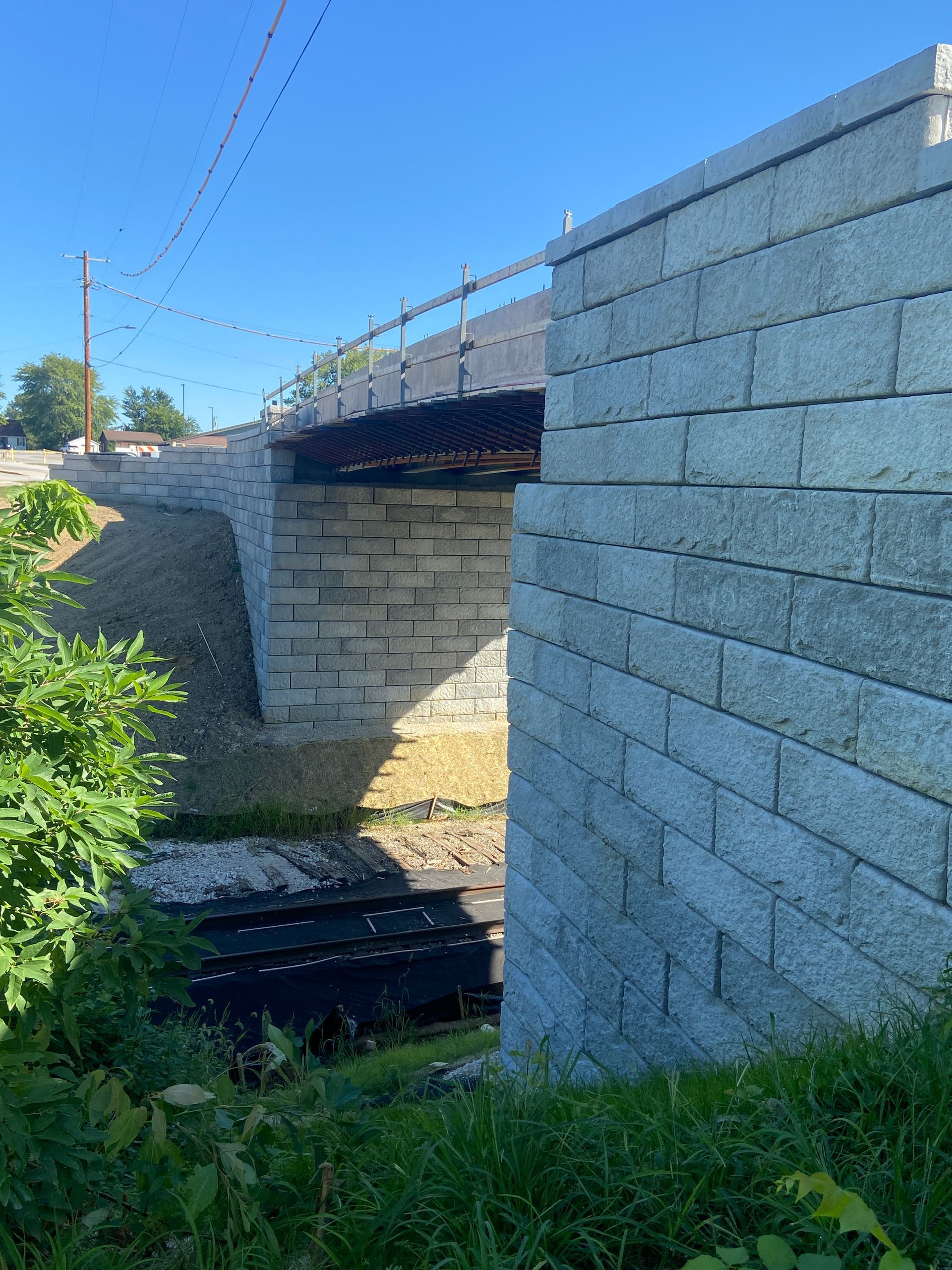

Tall Gravity Retaining Walls
- Unique tongue-and-grove lock-and-placement design, combined with massive size and weight, permits retaining wall heights up to 17 ft. 4 in. without reinforcing geogrid. Eliminates the time and cost associated with excavation and soil replacement when reinforcing geogrid is required.
- Significantly taller ReCon Walls can be built by incorporating geogrid, setback or tiers.
Durability
Made of wet-cast, air-entrained concrete with a minimum psi of 4,000. The durability required in environments prone to the challenges of freeze/thaw cycle, road salts or brackish water.
Faster Installation
Faster Installation
Concrete Block Walls from ReCon can be constructed quickly using equipment generally available to contractors, maximizing productivity and minimizing manual labor. No mortar, no pins.
Engineered and Tested
Engineered and Tested
A ReCon Retaining Wall can be professionally engineered and designed for wall performance that is generally unavailable for natural stone walls.
Customized Design and Aesthetics
Custom Design
- The rustic rock finish prevents repetition in the overall wall pattern. Stains are readily available and easily applied in the field after installation to achieve a customized color that will last for years to come.
- Block comes in multiple depths to optimize efficiency by providing the mass when required or eliminating it when not required to save material and freight cost.
- Tapered block design allows both inside and outside 90 degree corners or curves.
- Caps or special top units that allow greenscape within four inches of the finished wall face are available.
ReCon CAD Details
National PreCast Concrete Association (NPCA) Certified Plant
ReCon concrete blocks are manufactured in a controlled environment with on-site computer regulated batching process which allows Reading Rock to achieve tight batch controls from pour to pour. In addition, our testing frequency is four times the testing standard to ensure you get the right product, on time, every time.
Architectural PreCast Association (APA) Certified Plant
Reading Rock has in place an independently monitored quality control system. Architects, engineers and government agencies nationwide have accepted APA Certification as an equivalent to PreCast/PreStressed Concrete Institute (PCI) Certification.
In-House PE and LEED® APs and GAs
Our in-house engineers and LEED Accredited Professionals help us stay ahead of the curve in supporting green building and devise new ways to make our products and processes not only with the best quality, but also with what is best for our environment. Contact us today to see how your ReCon retaining walls can contribute to LEED credits on your next project.
DOT Certified
Spec Sheets
Design Files

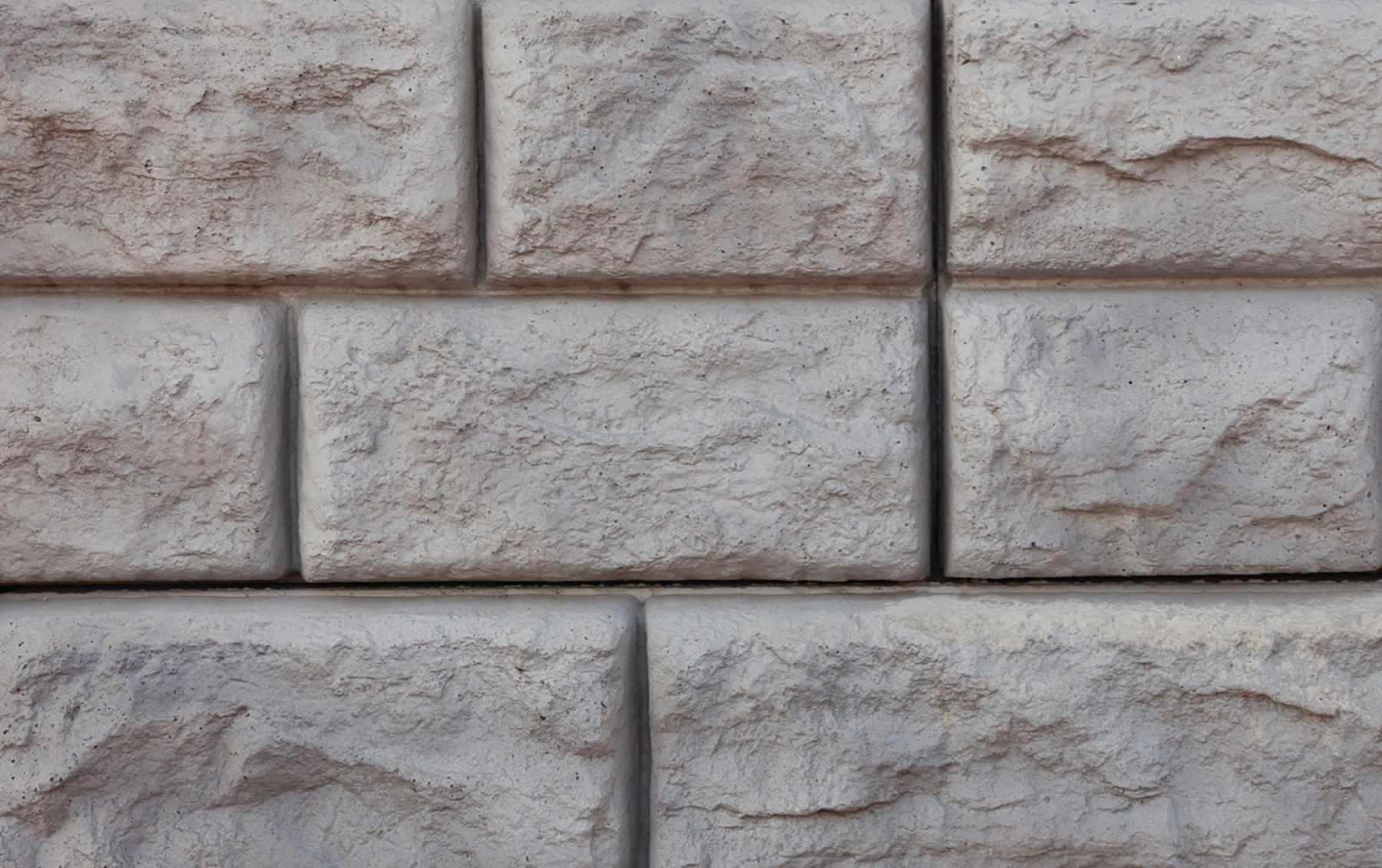

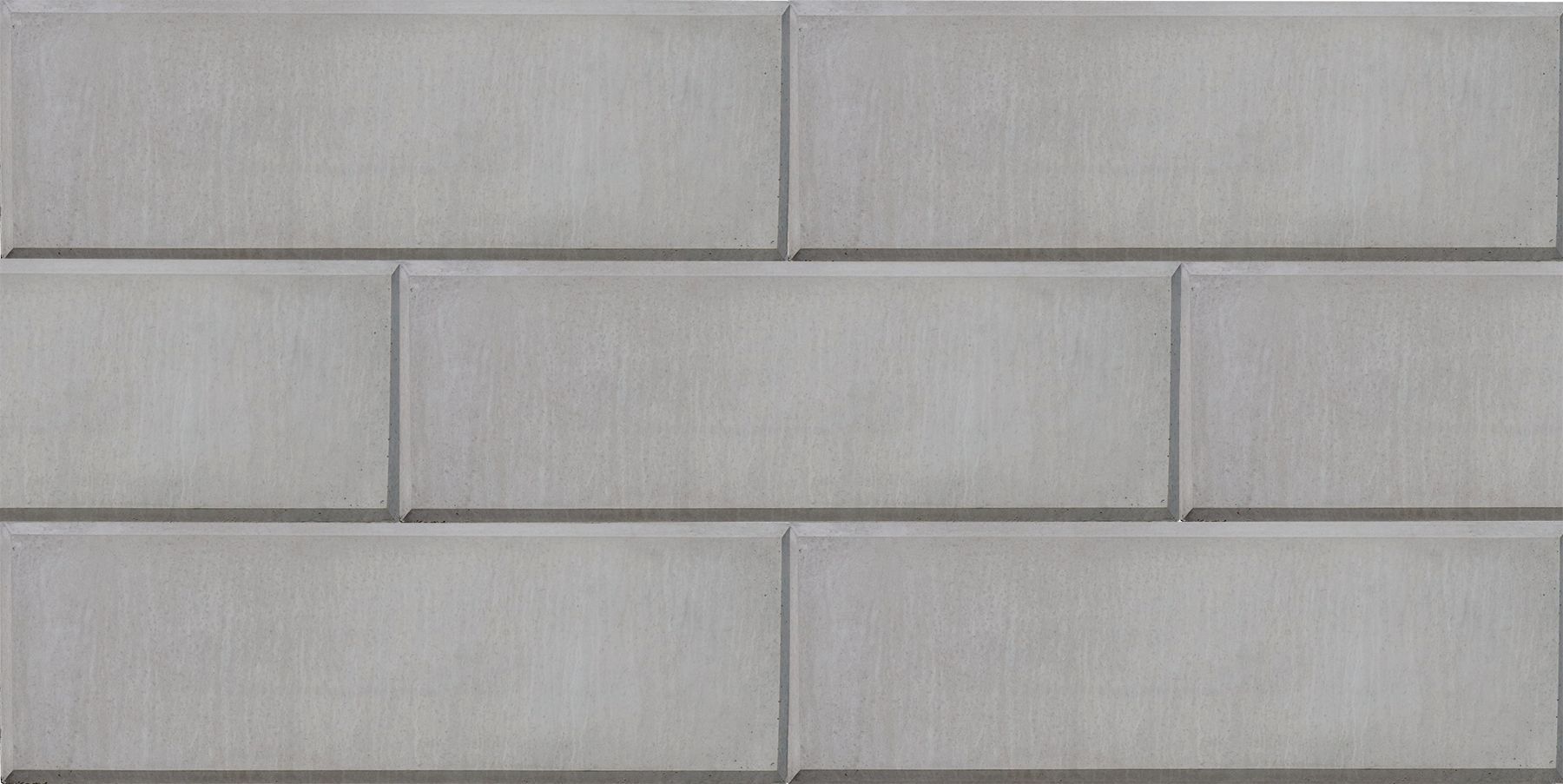

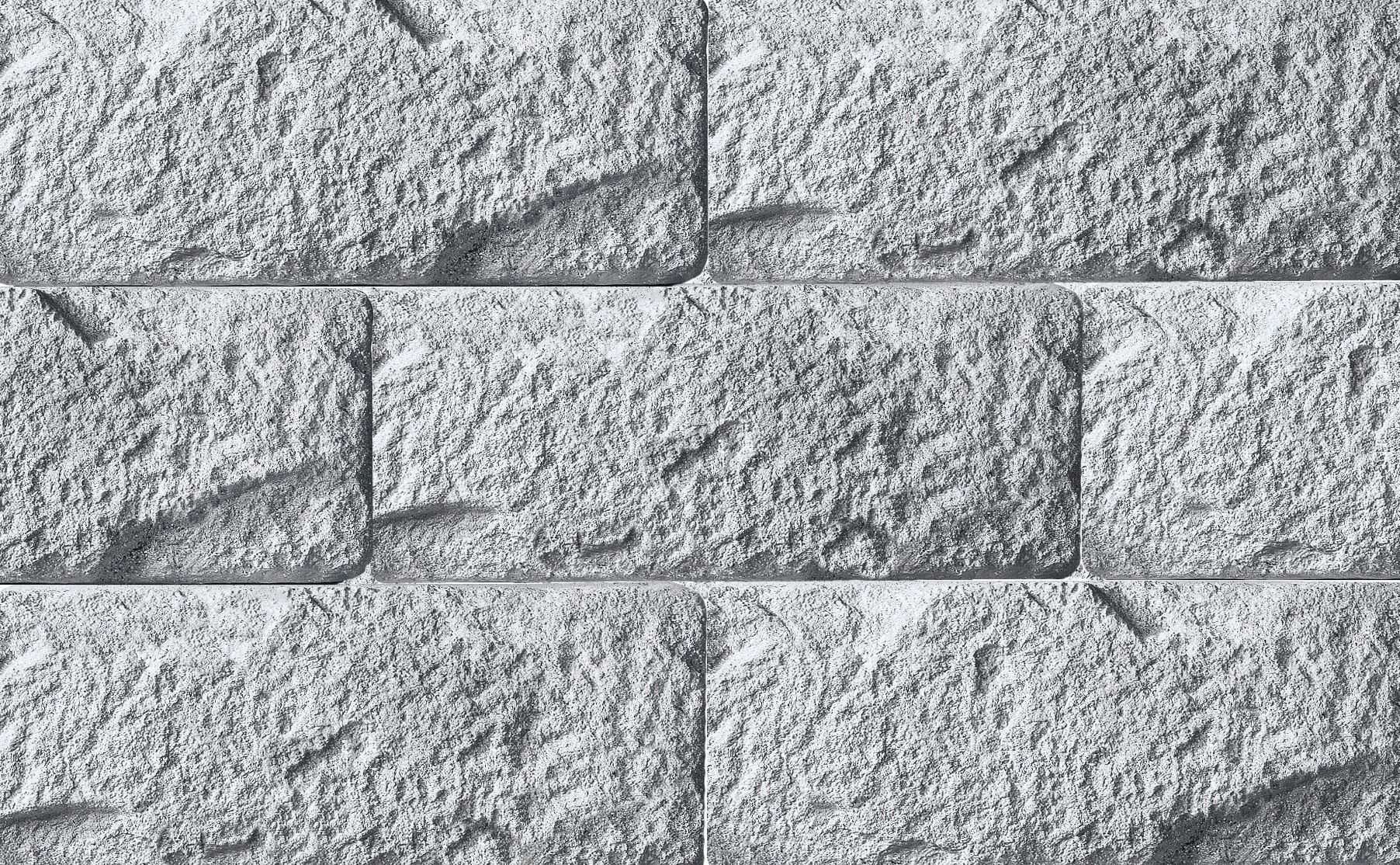

Colors

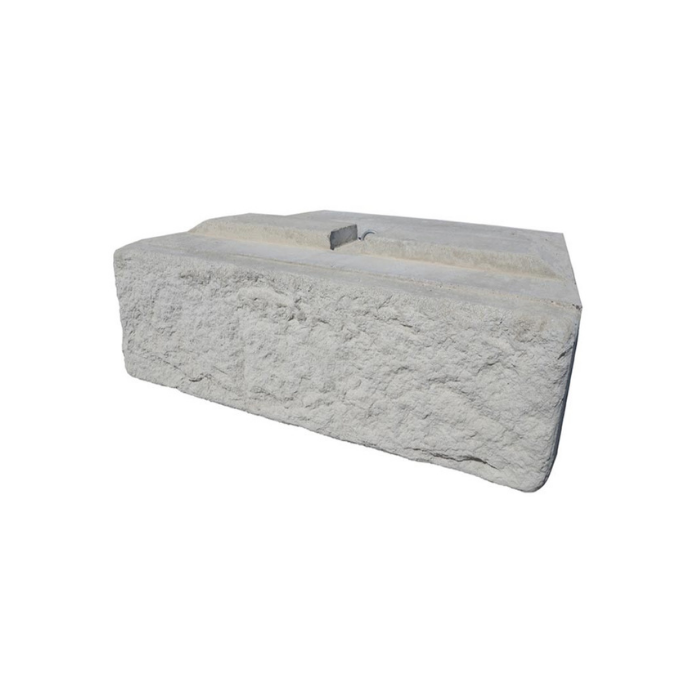

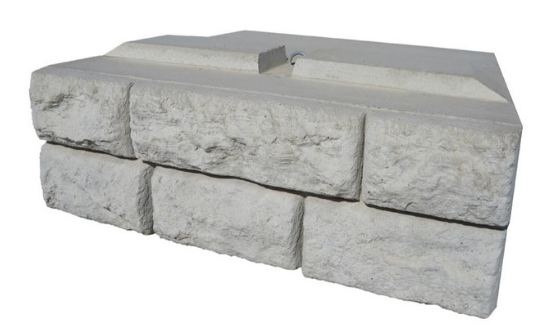

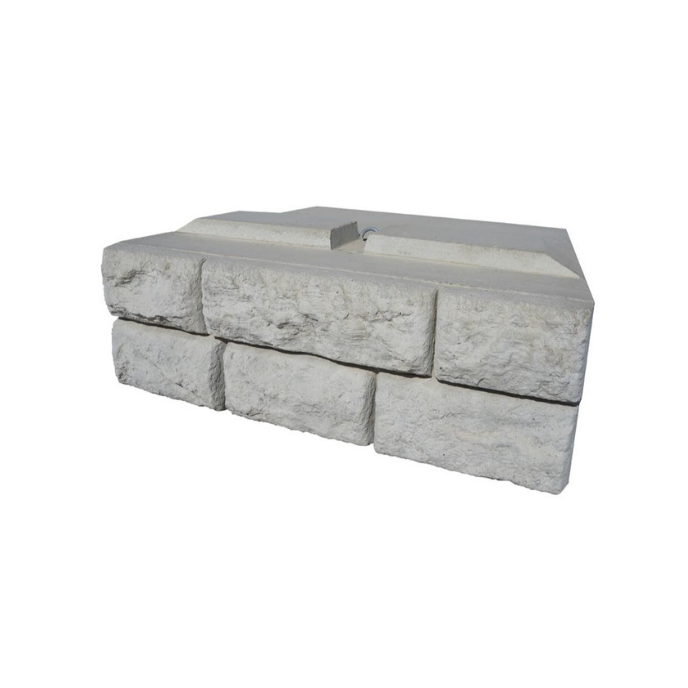

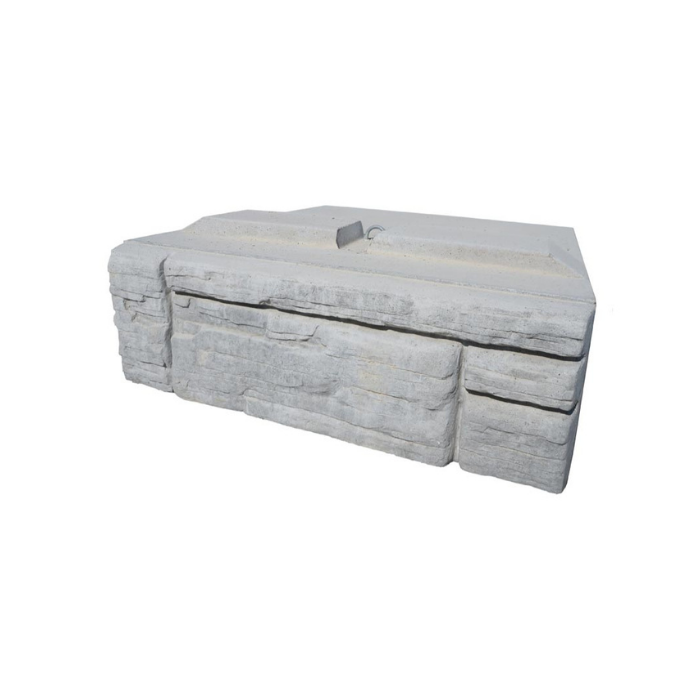

Face Options
