Allan Block Europa®
Retaining Walls
Description

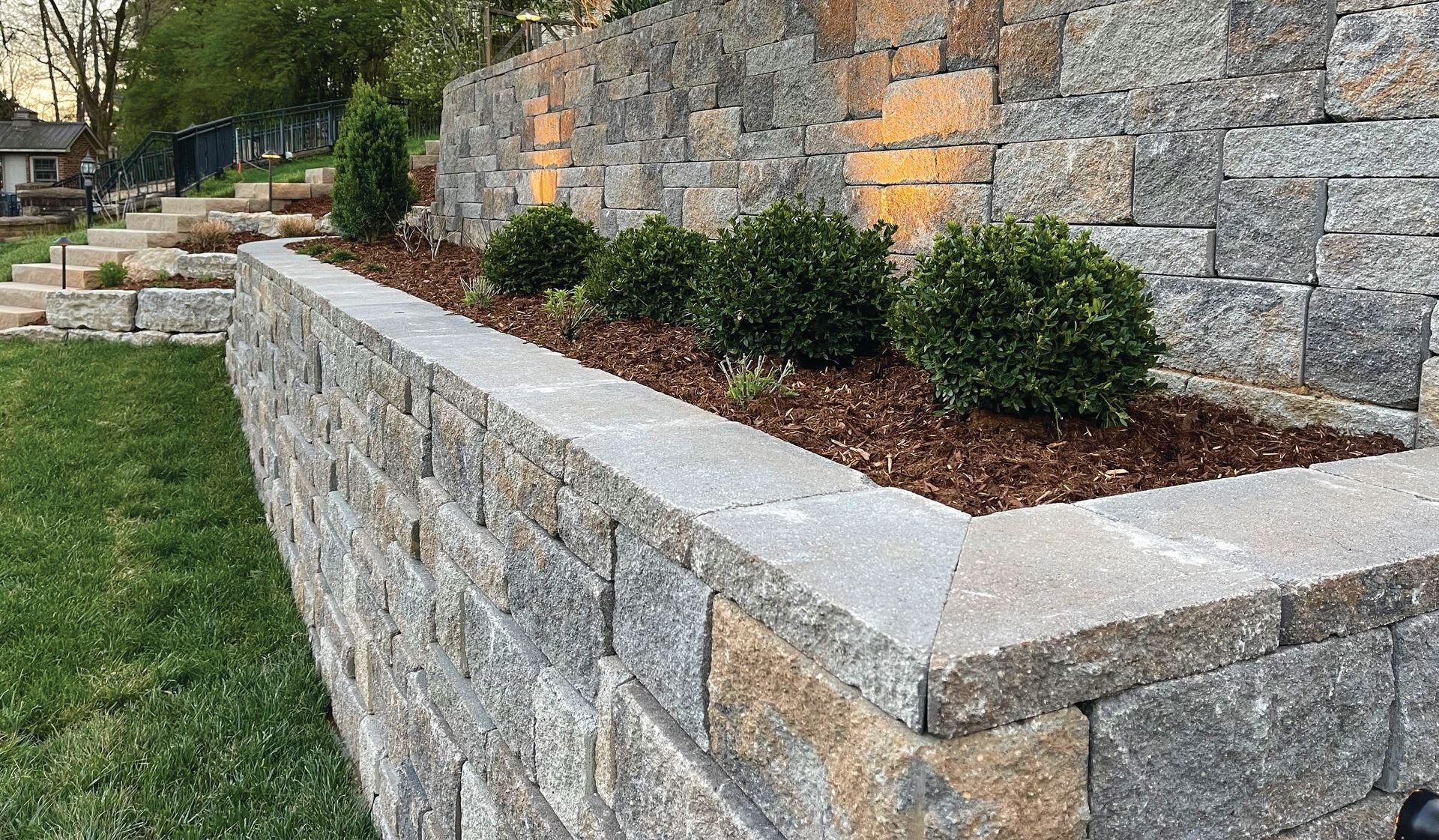

The AB Europa® Collection offers a variety of patterns to capture the essence of rich, hand-laid stones using one block or a combination. The Abbey Blend utilizes all sizes of AB Europa and brings Old World distinction to any landscape.
AB Europa is not recommended for step applications unless sealed after installation with SB1300 or SB7000.
Appearance:
• Surface Texture - Split faced, tumbled
Technical Information:
• Conforms to ASTM C1372
• Eligible for LEED v4.1 credits
Applications:
• Pedestrian
• Commercial
• Department of Transportation
Installation Methods:
• Hand
• Mechanical
Spec Sheets
Design Files
Colors

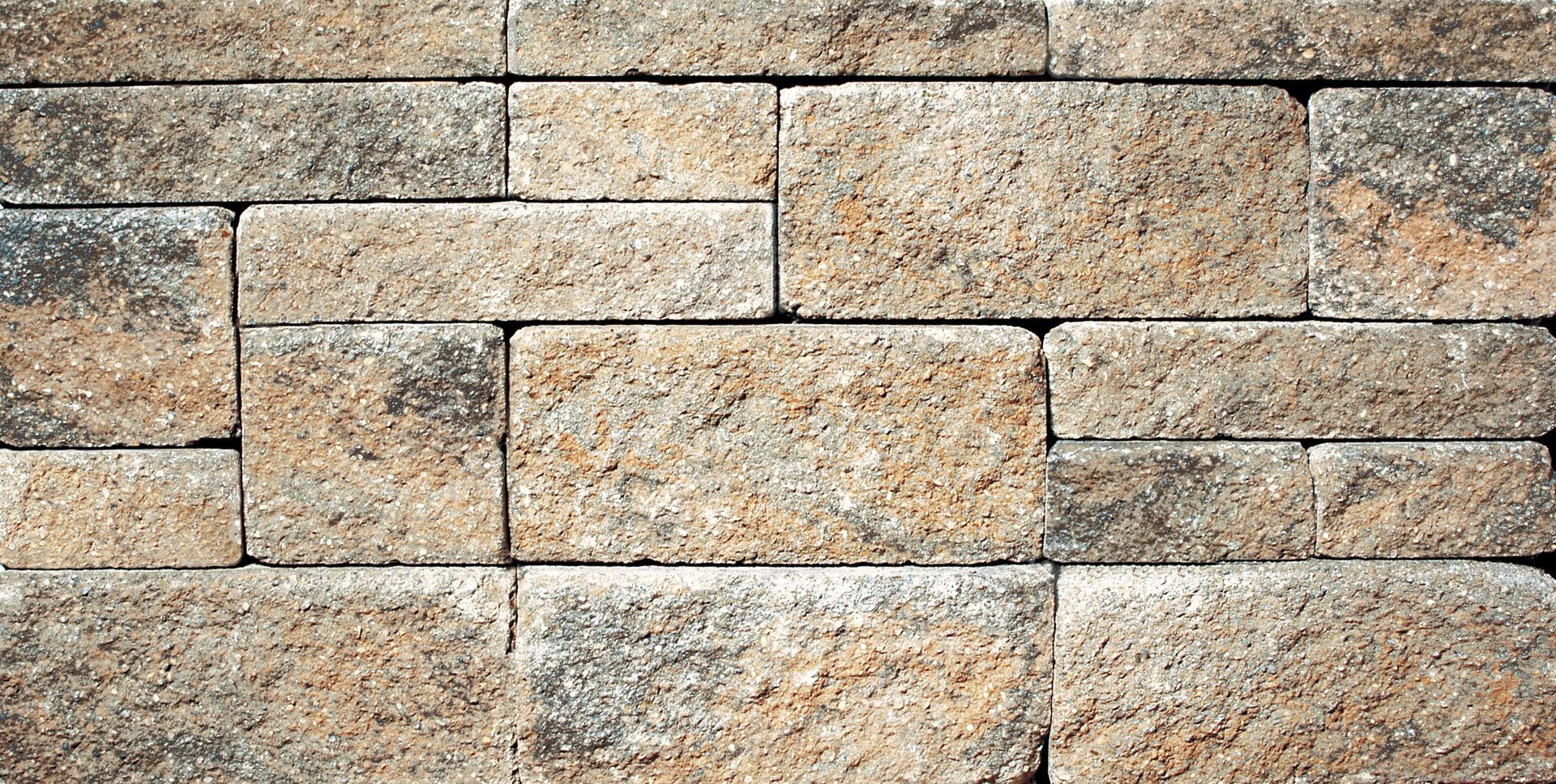

STONECREEK
Portraits of people from around the globe
Button
Sizes
Packaging
| AB EUROPA COLLECTION - RETAINING WALLS | Dimensions | Weight | Pieces (Sq. Ft./ Full Pallet | Weight/ Full Pallet | Stock Colors |
|---|---|---|---|---|---|

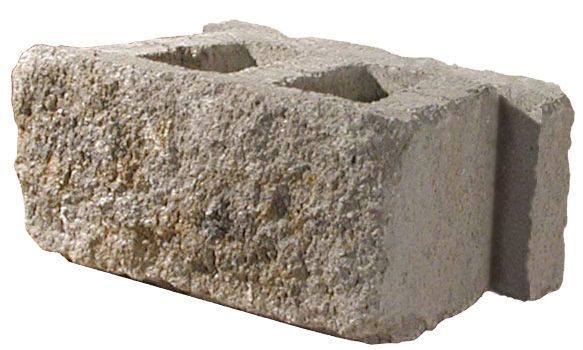

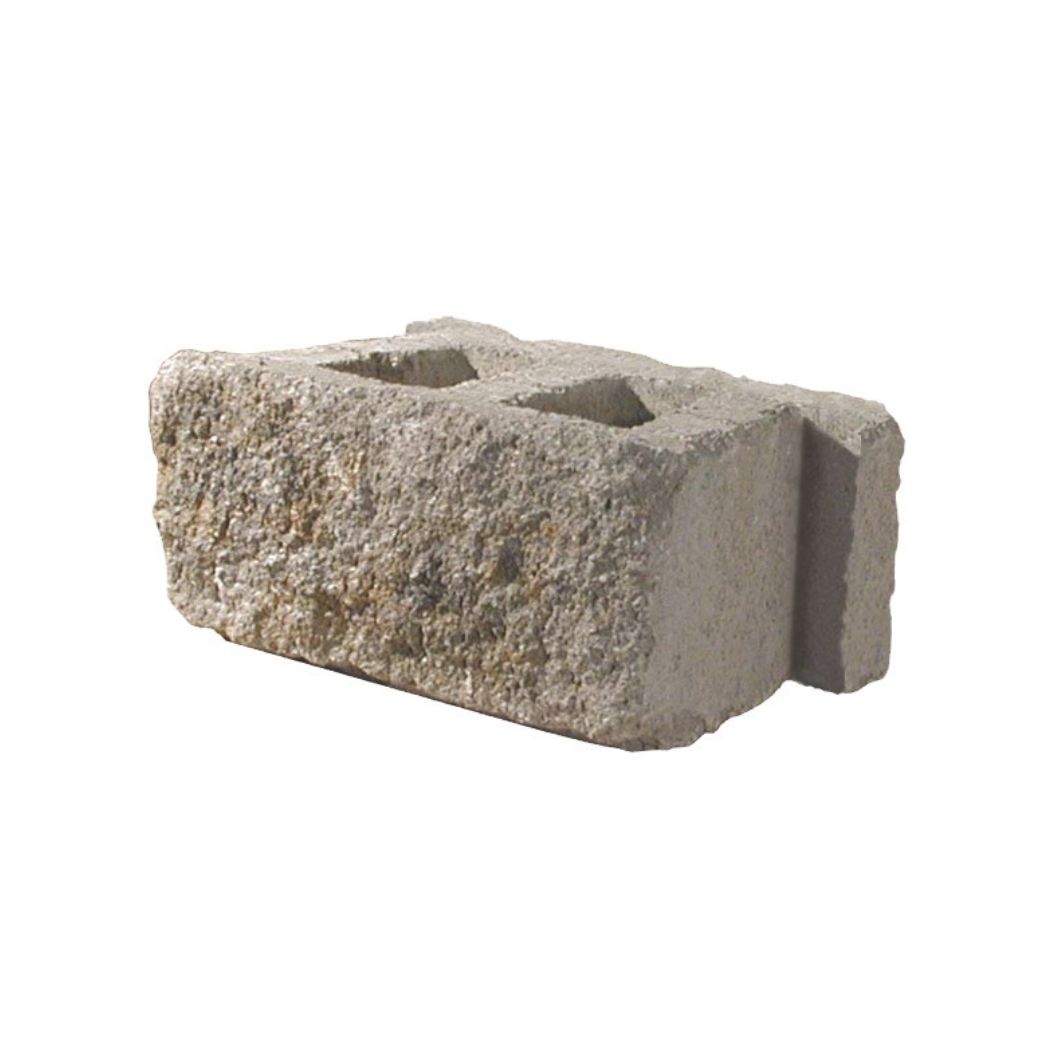

| AB DOVER | 7-7/8" H x 10-1/2" D x 17-5/8" L | 88 LBS | 40 (39 SF) | 3,520 LBS | Stonecreek |

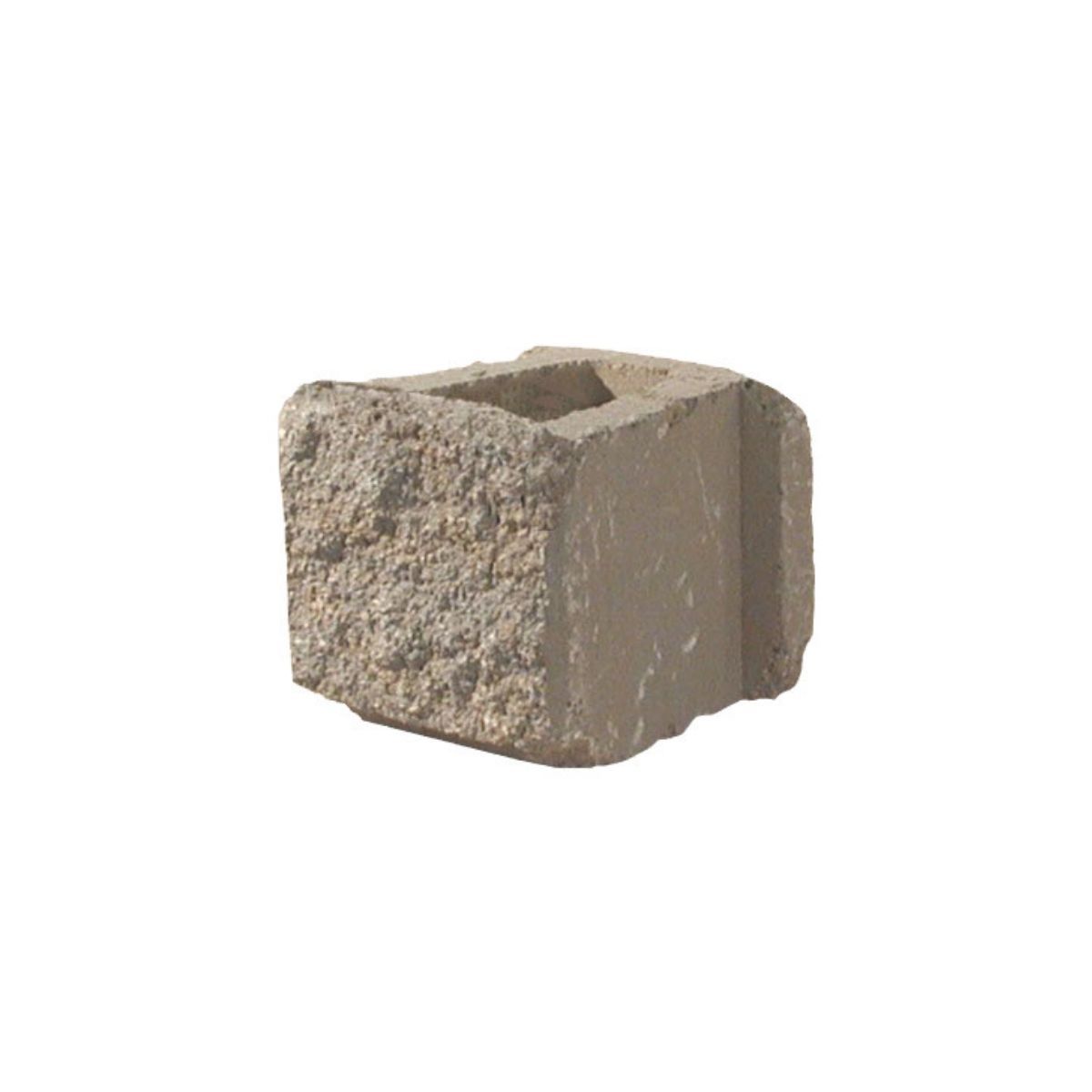

| AB PALERMO | 7-7/8" H x 9-1/2" D x 8-13/16" L | 41 LBS | 80 (39 SF) | 3,280 LBS | Stonecreek |

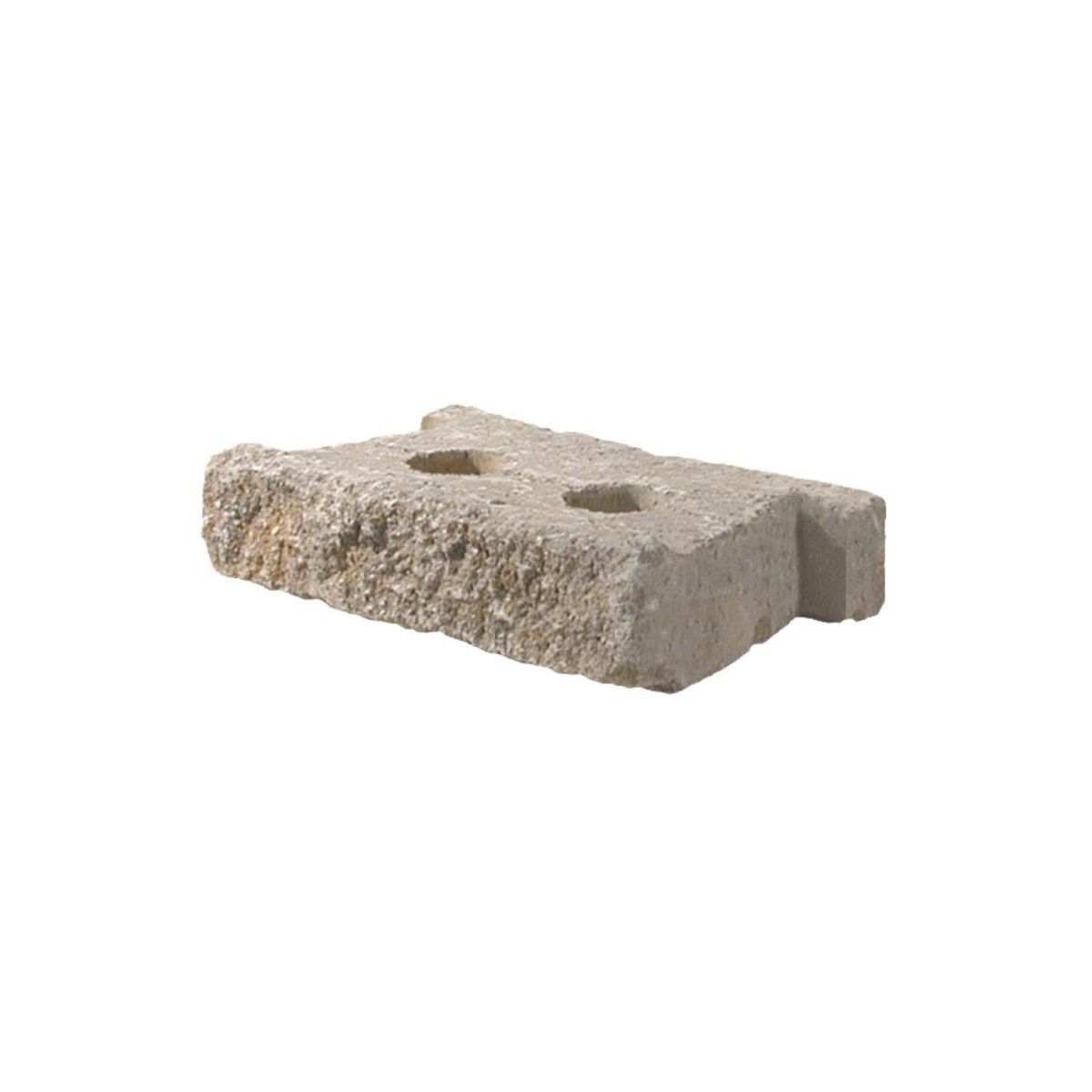

| AB BARCELONA | 3-15/16" H x 10-1/2" D x 17-5/8" L | 48 LBS | 64 (31 SF) | 3,072 LBS | Stonecreek |

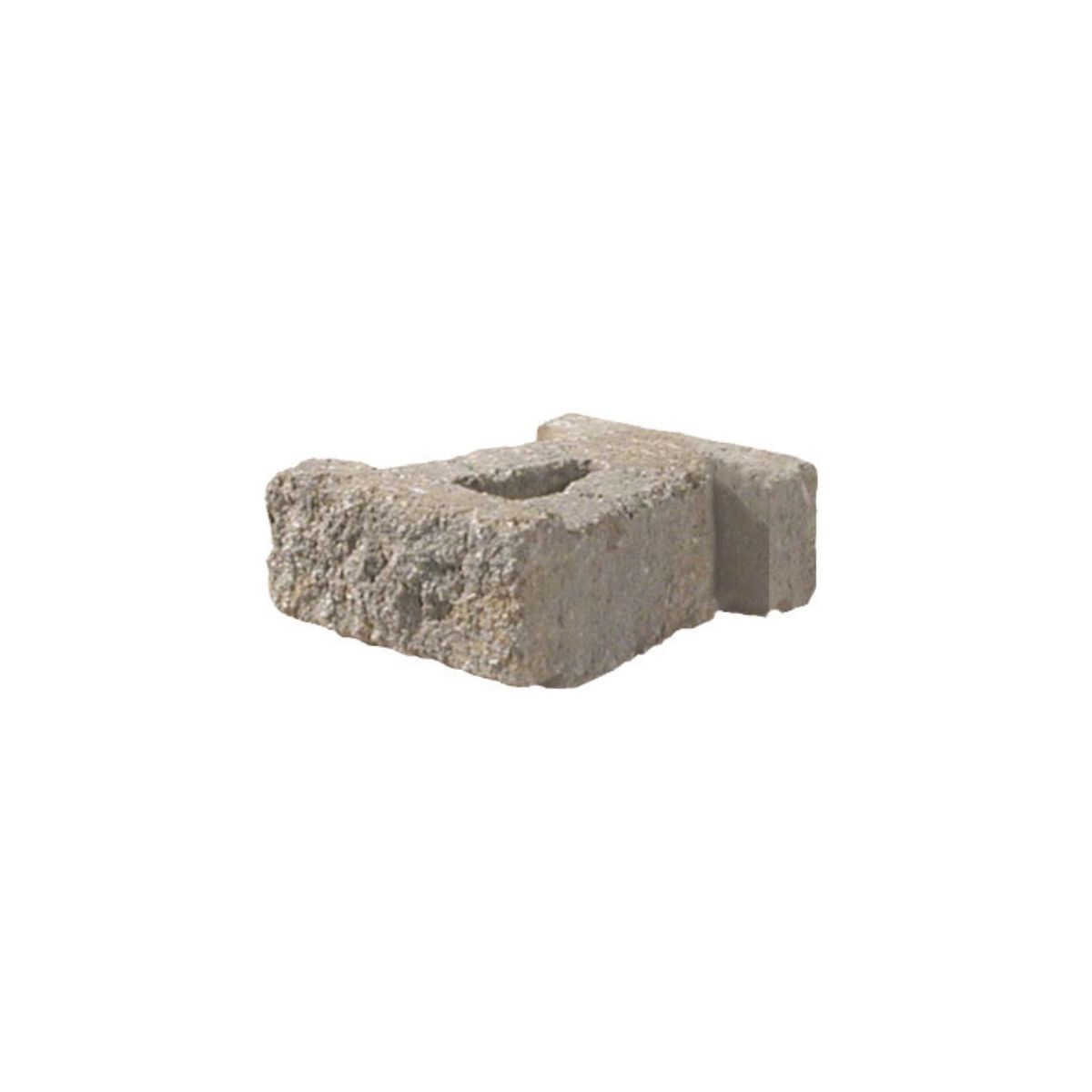

| AB BORDEAUX | 3-15/16" H x 10-1/2" D x 8-13/16" L | 25 LBS | 128 (31 SF) | 3,200 LBS | Stonecreek |

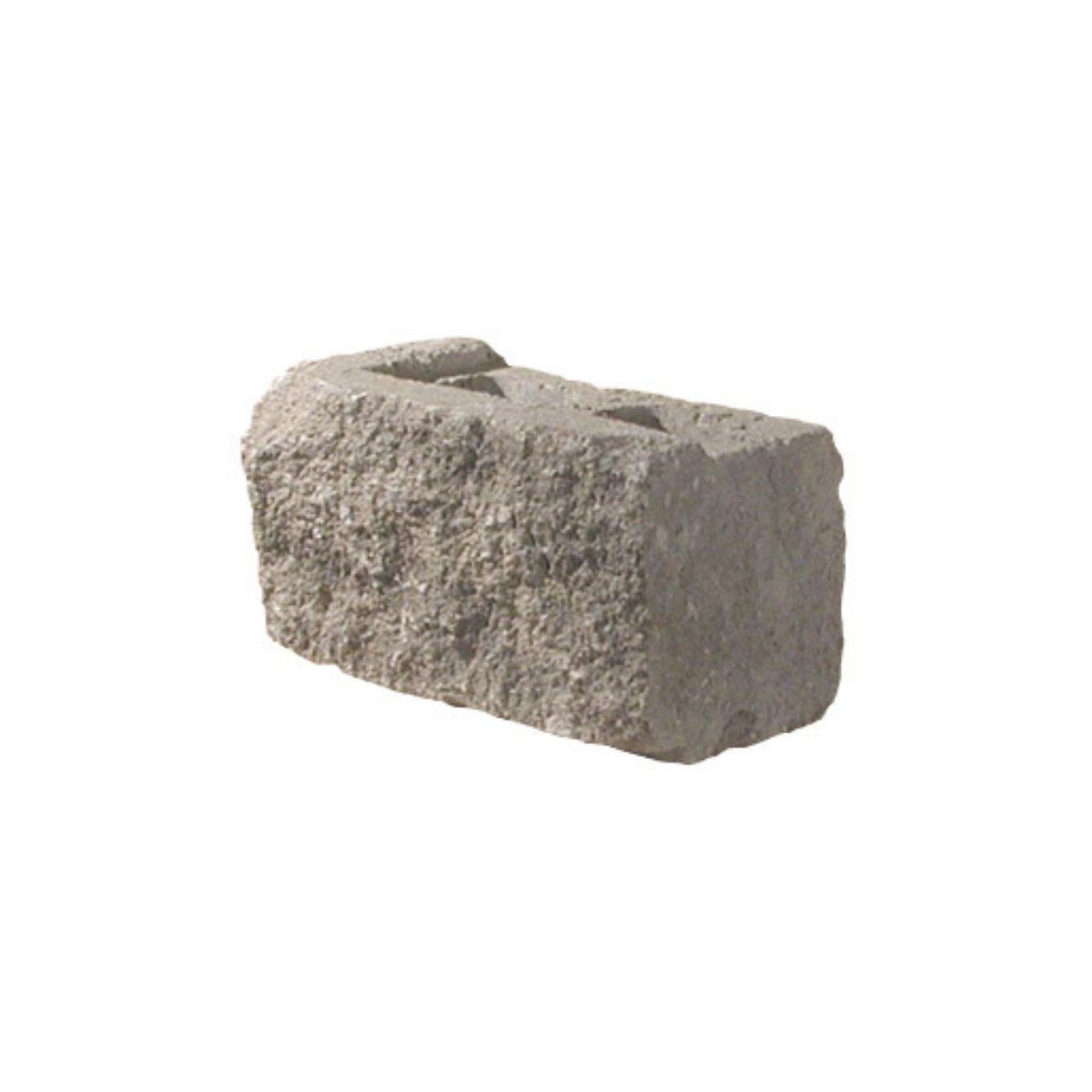

| AB EUROPA CORNER | 7-7/8" H x 7-3/4" D x 15-5/8" L | 60 LBS | 36 (n/a) | 2,160 LBS | Stonecreek |

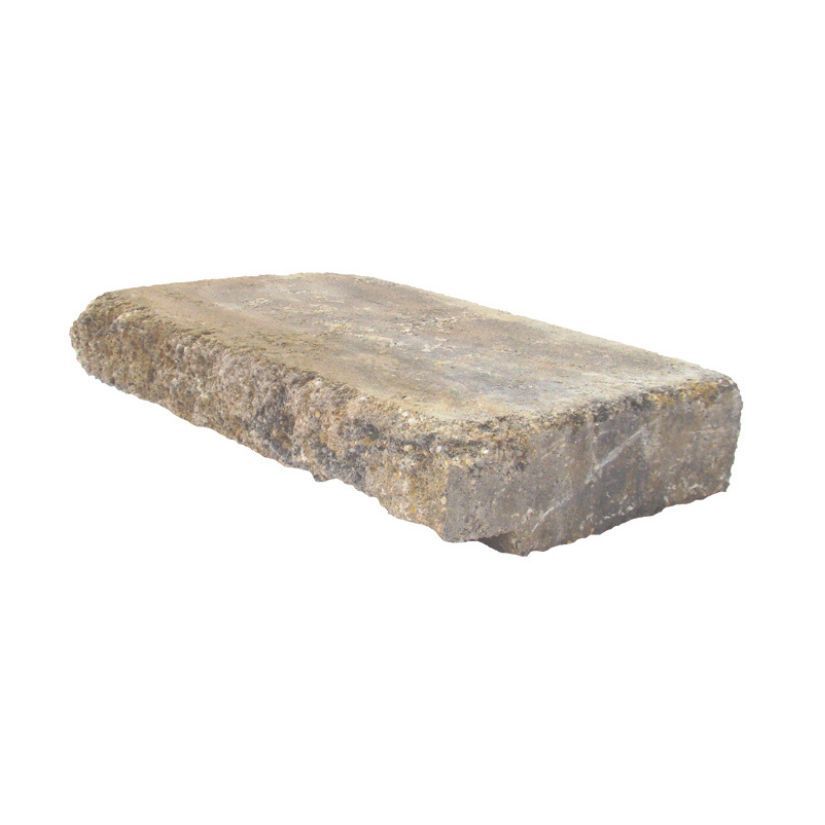

| AB EUROPA CAP UNITS | 3-5/8" H x 11-7/8" D x 17-5/8" L | 60 LBS | 64 (94 ln. ft.) | 3,840 LBS | Stonecreek |
