Turflock™
Permeable Pavers
Description

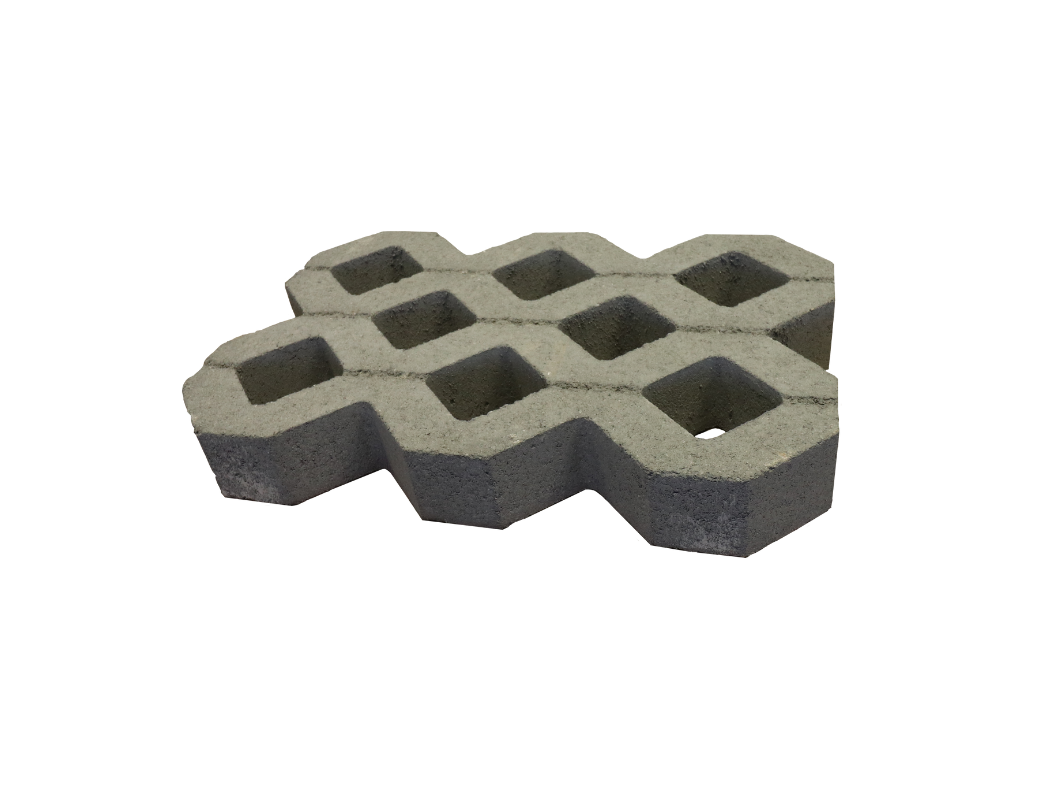

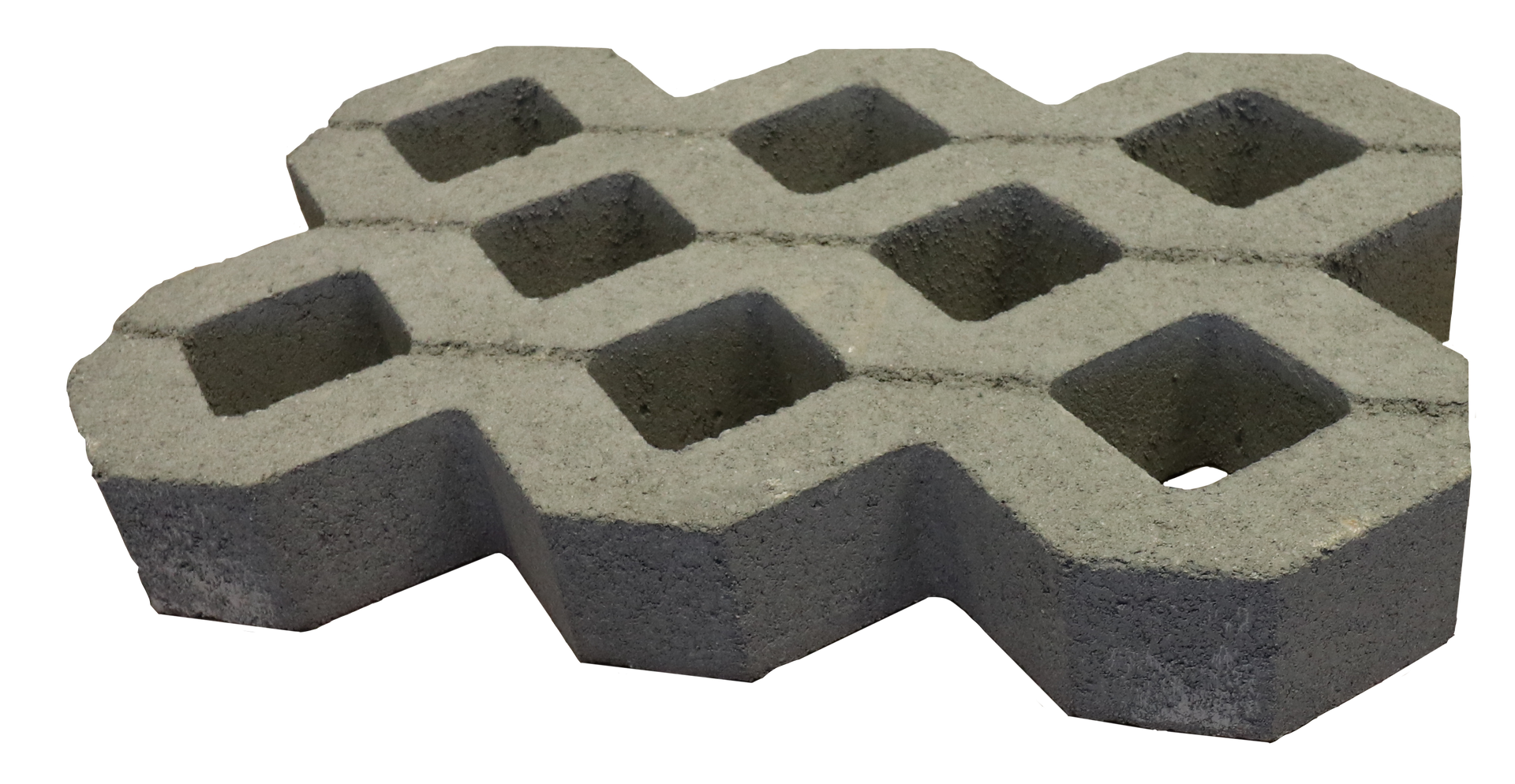

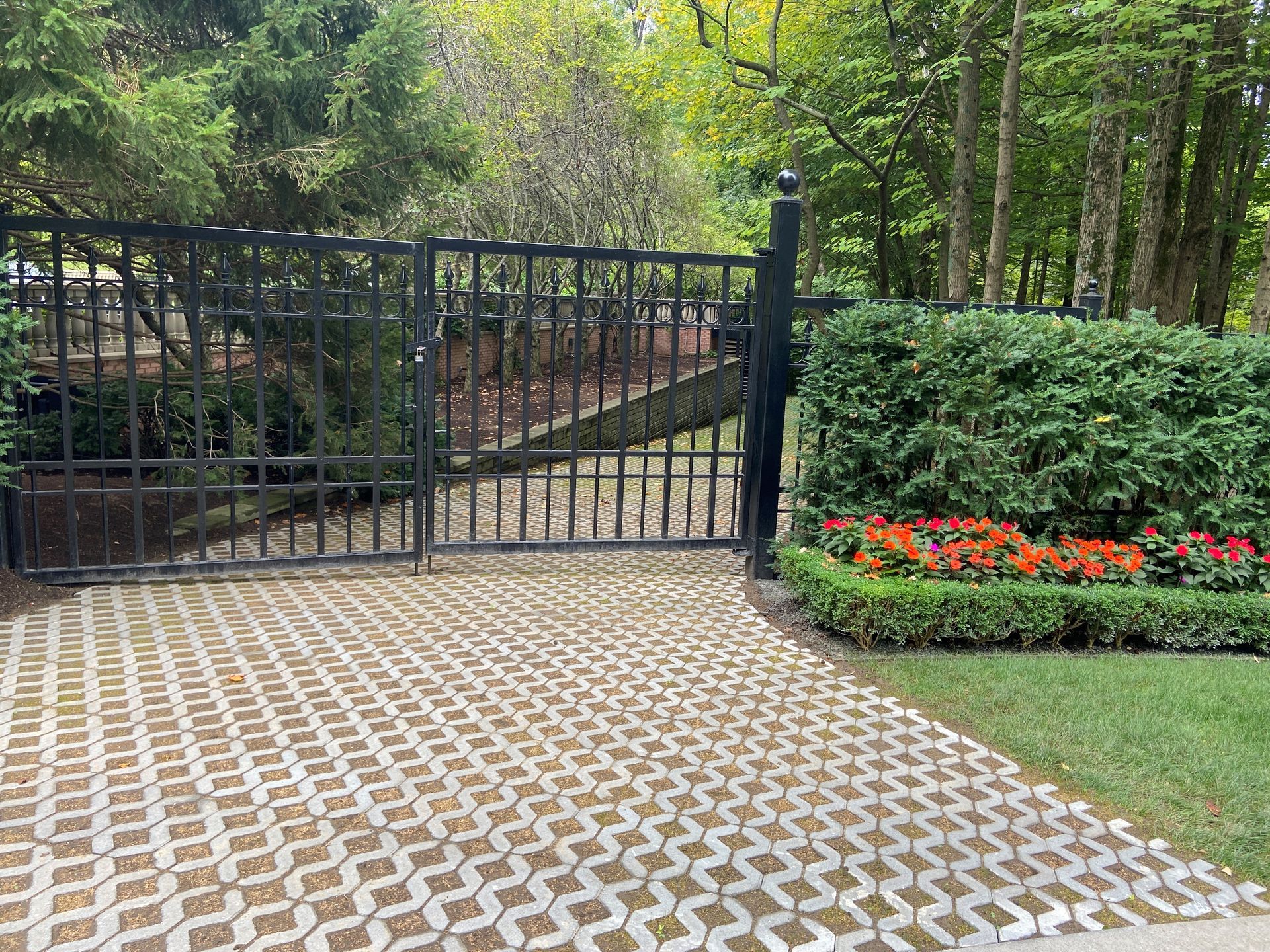

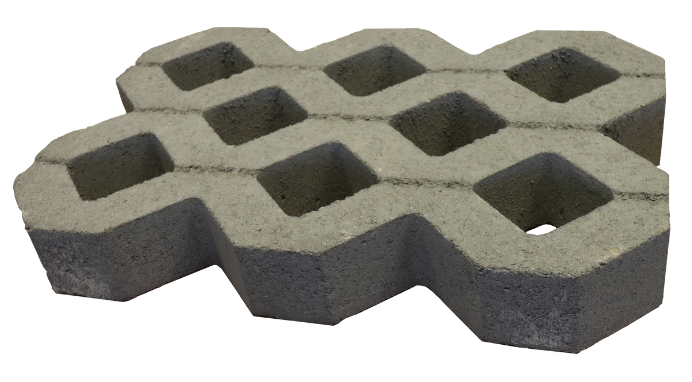

TurfLock™ Permeable Pavers provide a durable, eco-friendly solution for overflow parking, parks, fire lanes, golf paths, slopes, and erosion-prone areas. Its open honeycomb design supports ground cover growth while offering a strong 6500 psi interlocked base. Committed to "green" innovation, we continue to enhance our products with environmental responsibility in mind.
Appearance:
• Open Grid Paver
• Surface Texture - Standard Smooth
Technologies:
• Permeable
• Face Texture - Standard Finish
Technical Information:
• Conforms to ASTM C1319
• Eligible for LEED v4.1 credits
Applications:
• Pedestrian
• Residential Vehicular
• Commercial Vehicular
Installation Methods:
• Hand
Specifications
Design Files
ICPI-69 Details-Permeable Pavers with Partial Exfiltration
ICPI-70 Details-Permeable Pavers - No Exfiltration
ICPI-28 Details-Slope Protection_Concrete Grids
ICPI-30 Details-Pond_Lakeside Stabilization_Concrete Grid Pavement
ICPI-08 Details-Concrete Grid Pavement_Firelane_Driveway_Intermittent Parking
ICPI-03 Street Parking Lot Overlay on Existing Asphalt Pavement
Colors
BUCKHORN
Sizes
(H) 3⅛" x (D) 15¾" x (L) 23⅝"
Packaging
| TURFLOCK | Dimensions | Pieces / SF per layer / Pallet | Pieces/ Layers/ SF per Pallet | Weight/ Full Pallet | Stock Colors |
|---|---|---|---|---|---|
| 15.75" x 23.625" x 3.125" | 1 unit= 2.59 SF | 32 pcs/ pallet = 82.88 SF | 1,872 LBS | Concrete Gray |
