HydraBric® III
Permeable Pavers
Description
HydraBric® III Permeable Pavers are environmentally friendly, making the paved surface both ecologically sound and economically smart. We proudly support the development of "green" product innovations and are committed to developing and improving our entire product line with respect to the environment.
Appearance:
• Edge Detail - Microbevel
• Surface Texture - Standard Smooth
Technologies:
• Permeable
• Face Texture - Standard Finish
Technical Information:
• Conforms to ASTM C936
• Eligible for LEED v4.1 credits
Applications:
• Pedestrian
• Residential Vehicular
• Commercial Vehicular
Installation Methods:
• Hand
• Machine
Specifications
Design Files

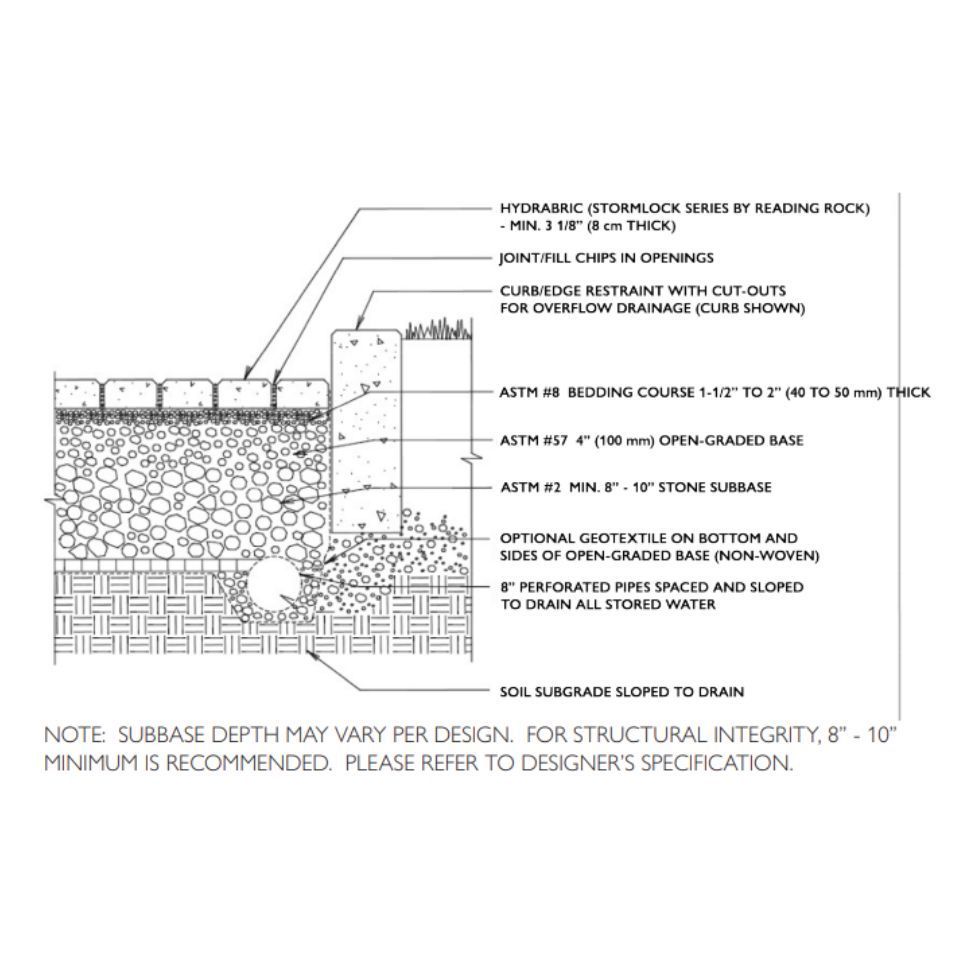

ICPI-69 Details-Permeable Pavers with Partial Exfiltration
ICPI-70 Details-Permeable Pavers - No Exfiltration
ICPI-28 Details-Slope Protection_Concrete Grids
ICPI-30 Details-Pond_Lakeside Stabilization_Concrete Grid Pavement
ICPI-08 Details-Concrete Grid Pavement_Firelane_Driveway_Intermittent Parking
ICPI-03 Street Parking Lot Overlay on Existing Asphalt Pavement
Colors

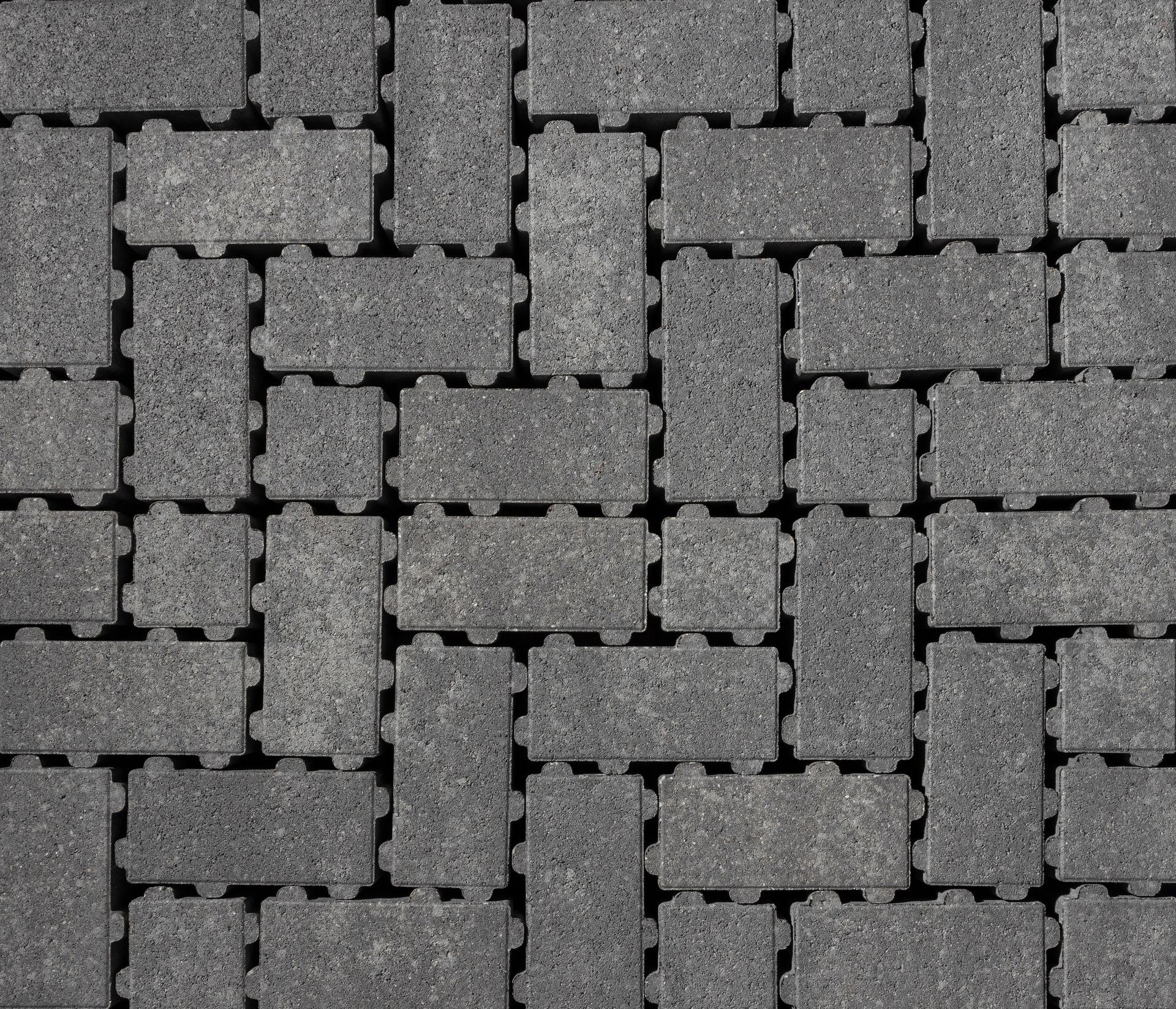

GRANITE
Sizes
(H) 3⅛" x (D) 3¾" x (L) 8"

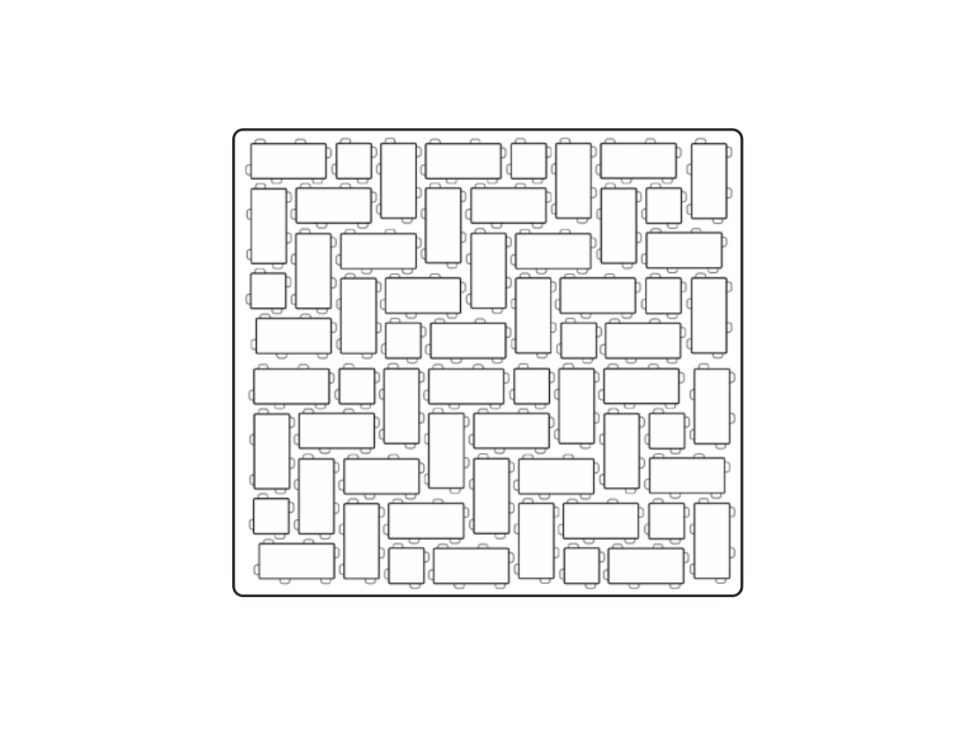

Patterns
Packaging
| HYDRABRIC III | Dimensions | Pieces / SF per layer / Pallet | Pieces/ Layers/ SF per Pallet | Weight/ Full Pallet | Stock Colors |
|---|---|---|---|---|---|
| Sold by the pallet | 3.75" x 8" x 3.125" (Full Piece) | 336 full pcs/ pallet | 98 SF | 3,243 LBS | Granite |
| 3.75" x 3.76" x 3.125" (Half Piece) | 98 half pcs/ pallet |
