AultWall®

Retaining Walls

AultWall® beveled blocks make it easy to build straight or curved walls with a simple install. Lightweight and versatile, they come in standard (up to 2’) and oversize (up to 4’).

  • Description

    Reading Rock’s AultWall® series features both Beveled and Straight face options, plus an oversize solid unit for added versatility. With easy, pin-free, and mortar-free installation, it simplifies wall building. The cap’s adjustable front-to-back placement allows for a custom reveal, unlike fixed designs in other systems.


    Features:

    •  A continuous rear lip allows for built-in set back (no pins) and shear tab

    •  Can easily accommodate soil reinforcement using geogrid

    •  Oversize Units may be used to build gravity walls up to 4’ 6” total

    •  wall height, excluding the cap


    Applications:

     • Steps

     • Terraced Walls

     • Corners

     • Garden Walls

     • Curved Walls

     • Reinforced Walls

     • Planters

     • Raised Patios

     • Straight Walls

     • Flower Beds

     • Raised Gardens



  • Spec Sheets

    Product Spec Sheet

    Safety Data Sheet

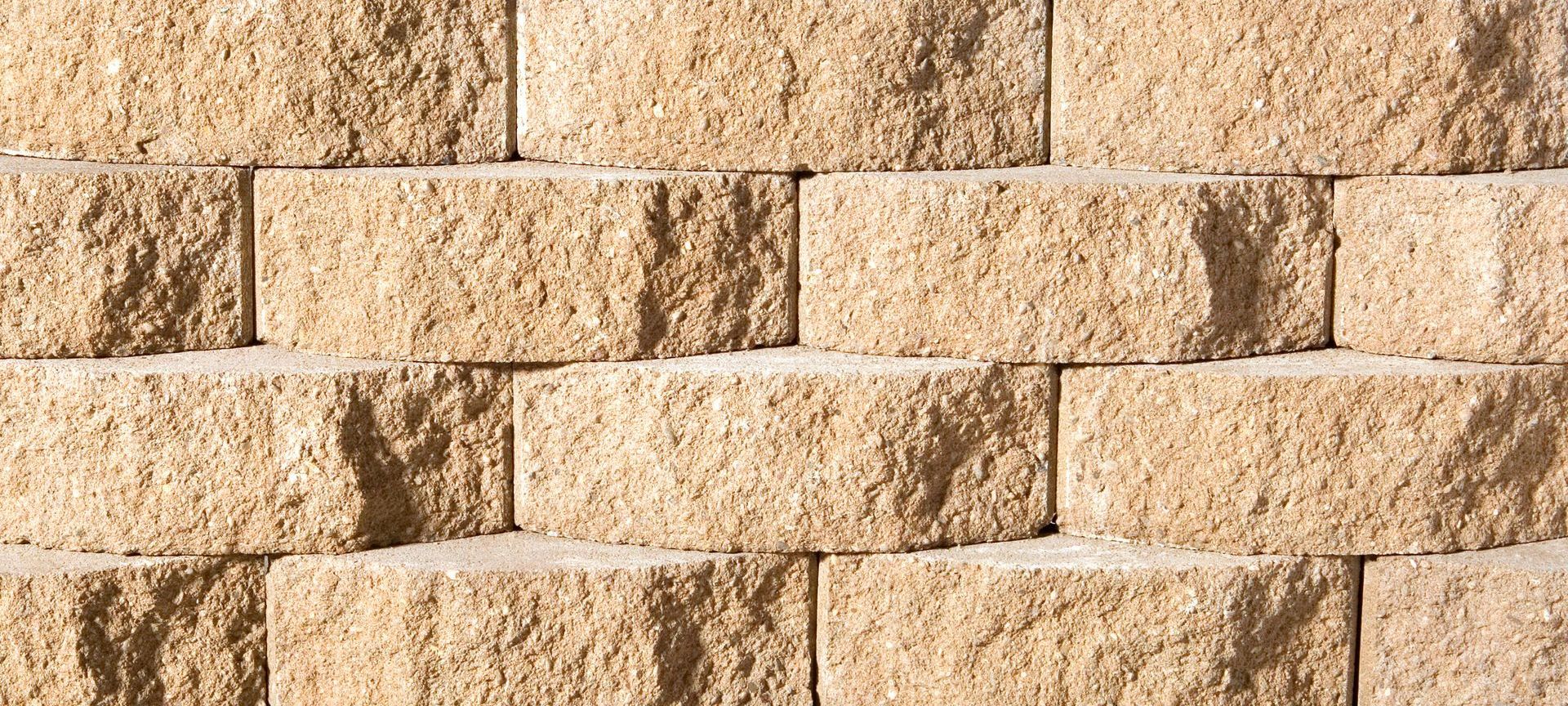

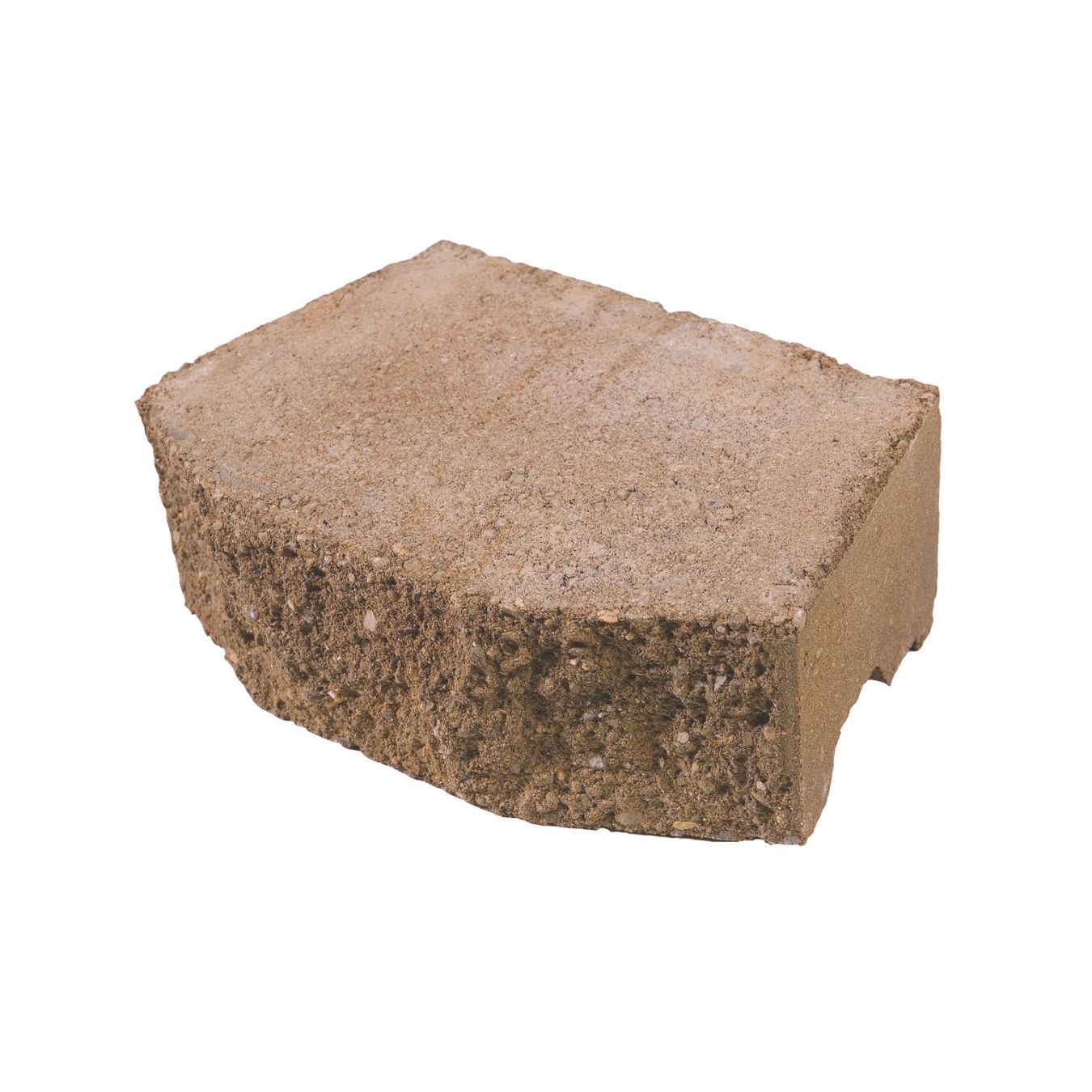

Standard

MARBLED BUFF

Portraits of people from around the globe
Button

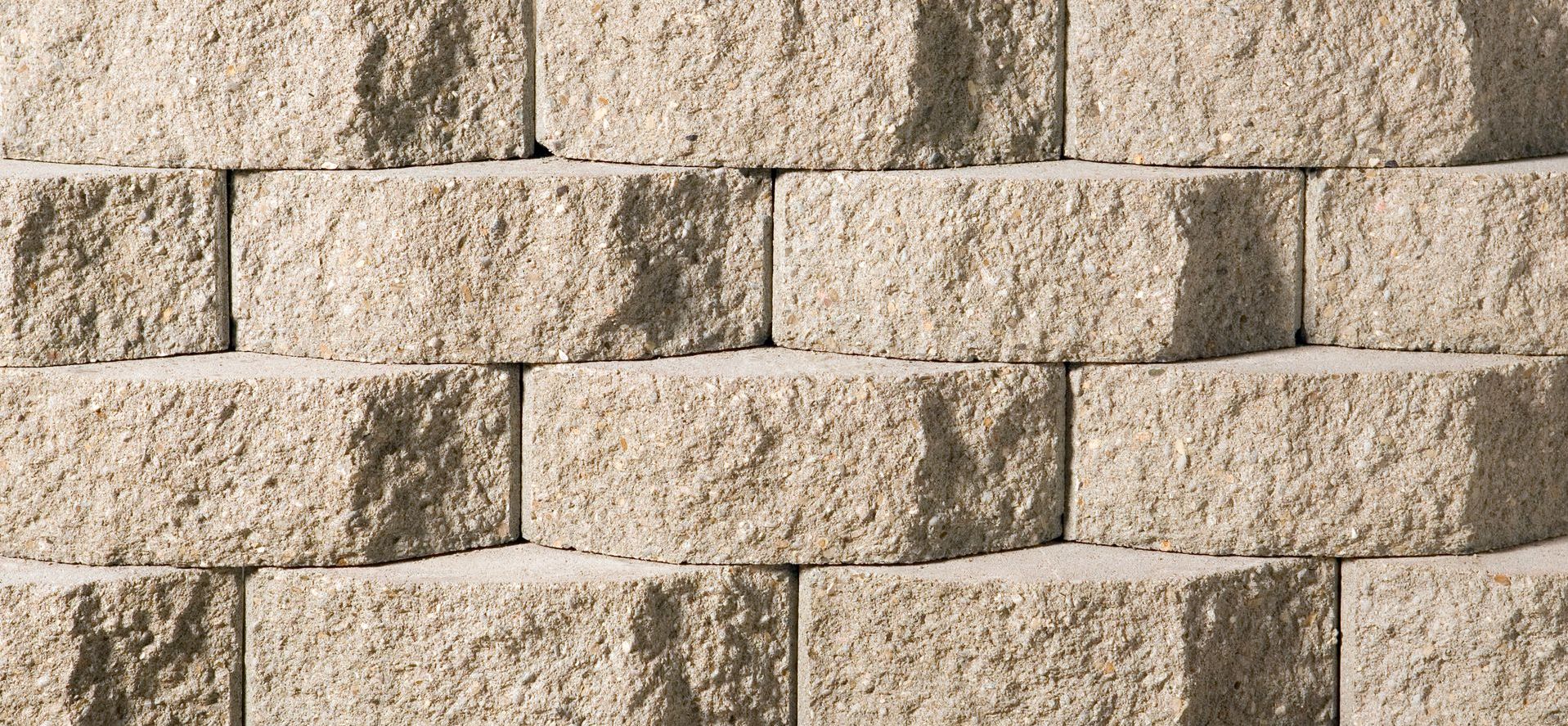

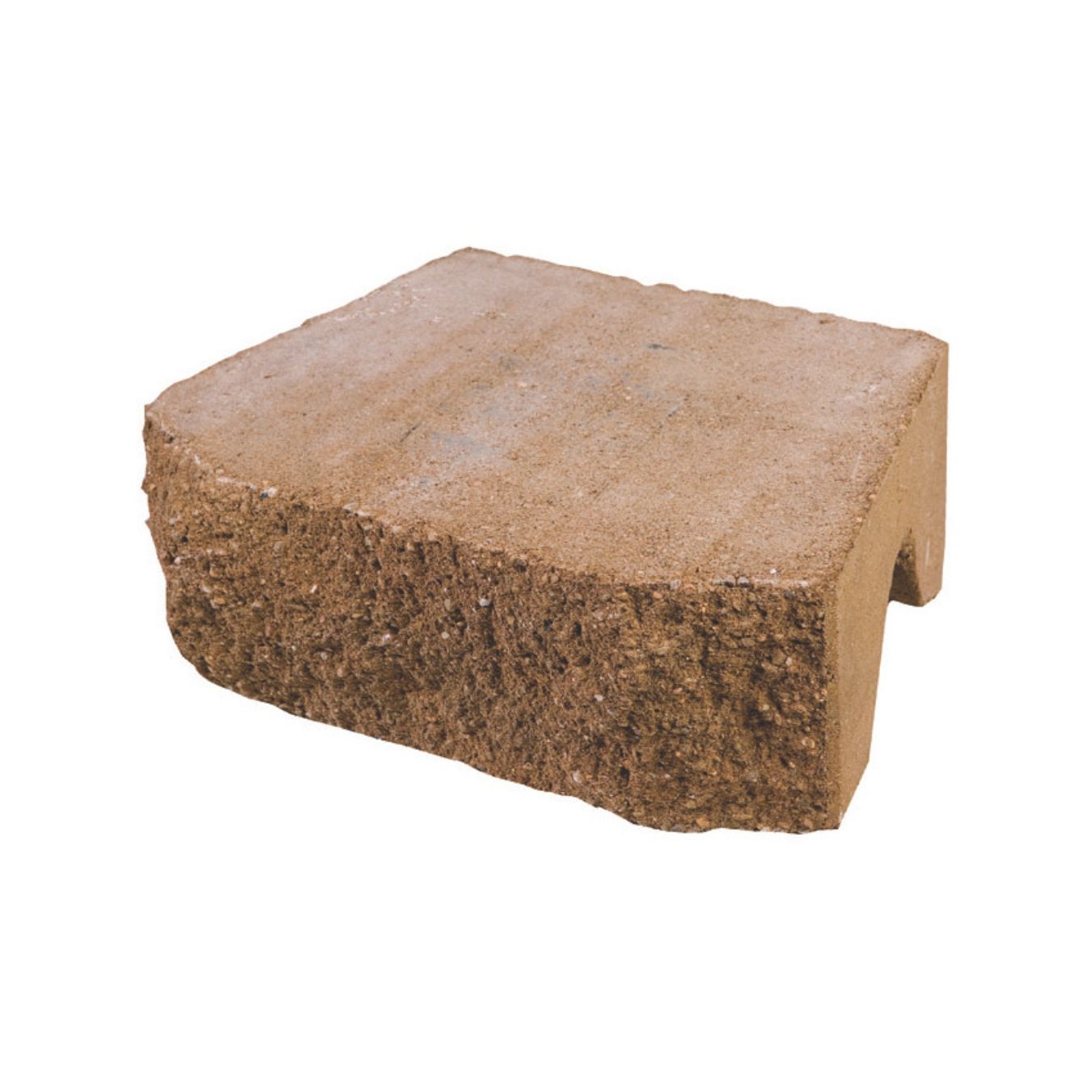

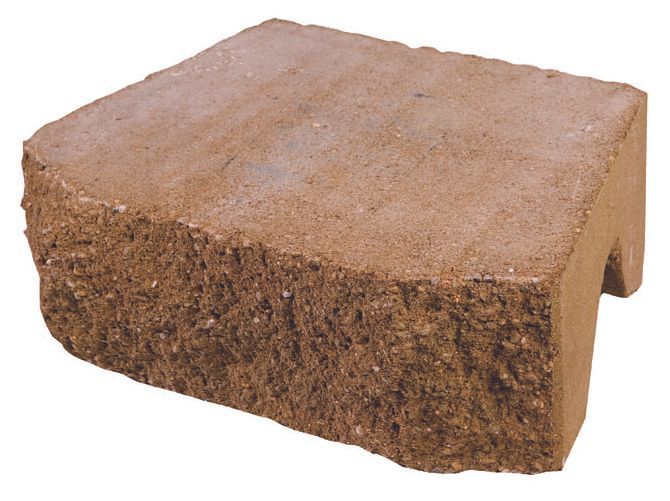

Oversize Beveled Face

NATURAL

Portraits of people from around the globe
Button

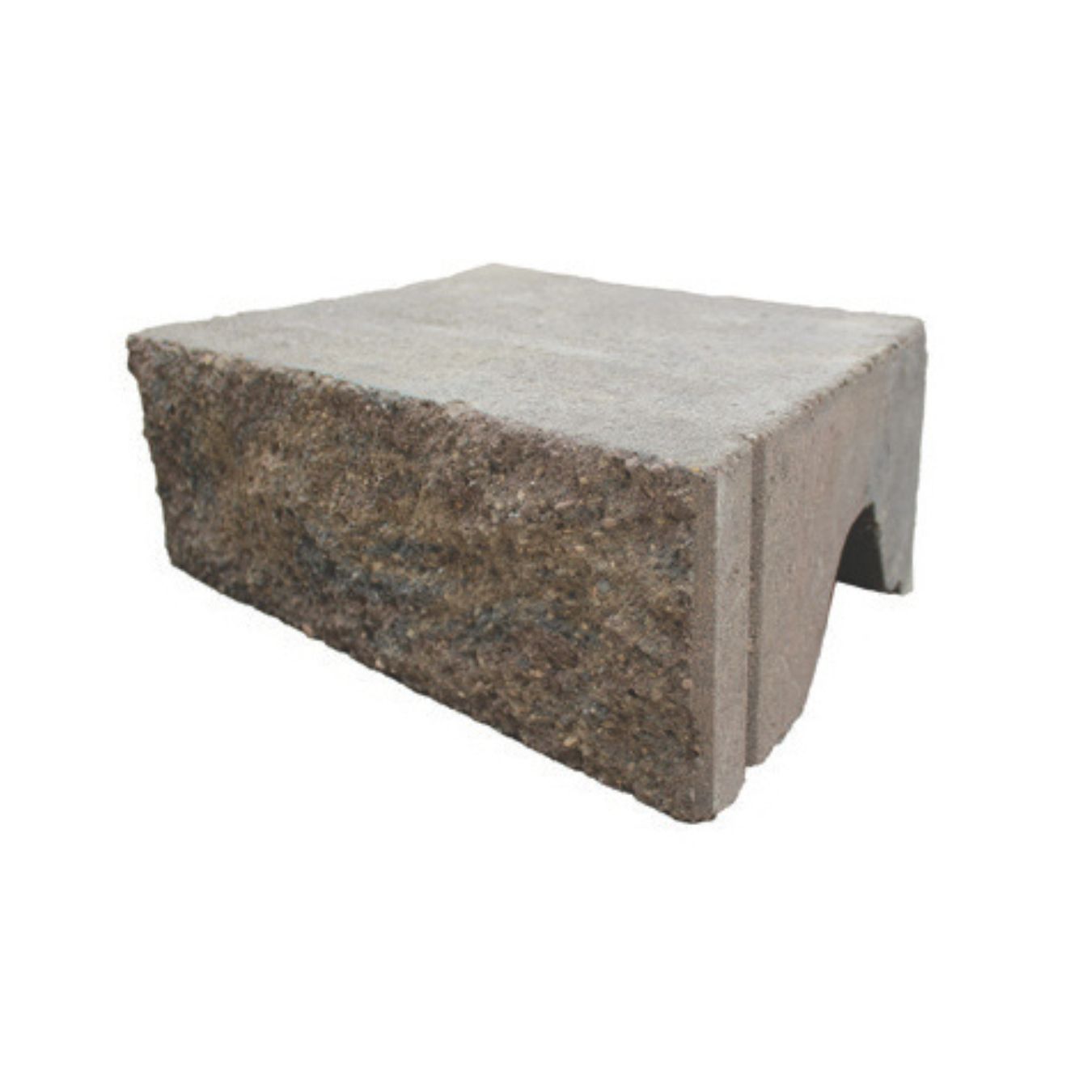

Oversize Straight Face

HICKORY BLEND

Portraits of people from around the globe
Button

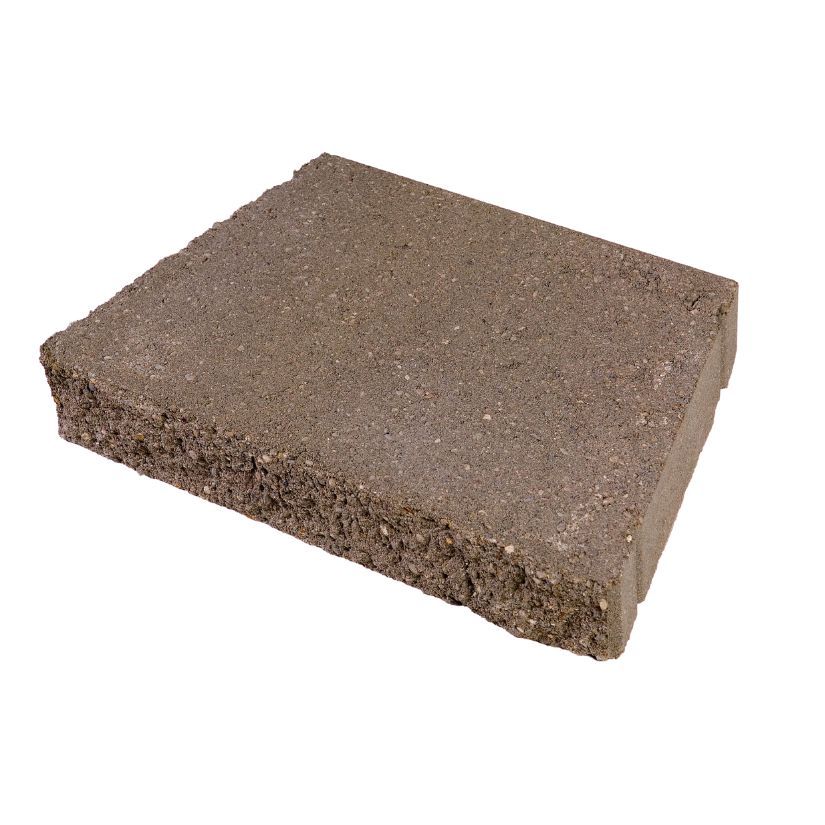

Oversize Angled Cap

Packaging

AULTWALL - RETAINING WALLS Dimensions Weight Pieces (Sq. Ft.) per Pallet Weight/ Full Pallet Stock Colors
STANDARD - Beveled Face 4" H x 8" D x 12" L 27 LBS 105 (35 SF) 2,835 LBS Marbled Buff
OVERSIZE - Beveled Face 6" H x 11-3/4" D x 16-15/16" L 78 LBS 48 (34 SF) 3,744 LBS Natural
OVERSIZE - Straight Face 3-15/16" H x 10-1/2" D x 17-5/8" L 78 LBS 48 (34 SF) 3,744 LBS Granite, Hickory Blend, Stonecreek - only IL
OVERSIZE - CAP 3 " H x 10-3/4" x 17-5/8" (Front) 40 LBS 72 (93 in. ft.) 2,880 LBS Granite, Hickory Blend, Natural
3" H x 10-3/4" x 13-1/4" (Rear)
