Rosetta Belvedere® Retaining Walls

Rosetta Belvedere®

Retaining Walls

Natural Look, Smart Choice

Get the look of natural stone without the cost or waste. Belvedere’s dual-sided texture is perfect for walls, columns, and more.

  • Description

    Enhance your landscape with the timeless beauty of natural stone—without the excess waste or high costs. Belvedere® captures the classic charm of stone with authentic texture on both the front and back, making it an ideal choice for free-standing walls and columns.


    Complete the look with coordinating wall copings and post caps, available to add the perfect finishing touch.


    Appearance:

     • Surface Texture - Split faced



    Technical Information:

     • Conforms to ASTM C1372

     • Eligible for LEED v4.1 credits


    Applications:

     • Pedestrian

     • Commercial

     • Department of Transportation


    Installation Methods:

     • Hand

     • Mechanical


  • Features

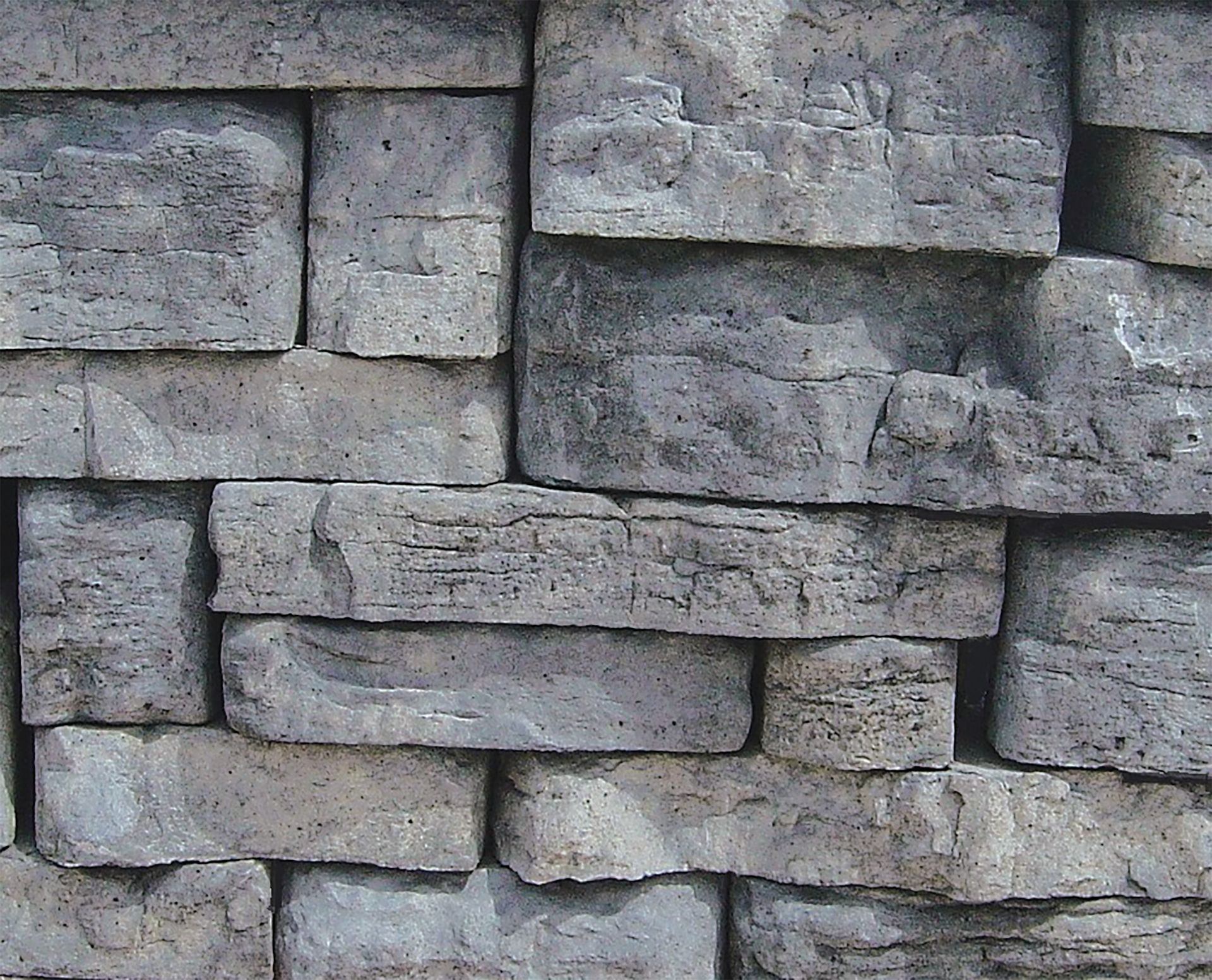

    • Natural stone texture on both the front and back with multiple face textures for each basic block size to provide a more random look
    • Creates both freestanding and retaining walls
    • Walls, columns, fire pits and more mean multiple creative possibilities
    • Wall blocks are tapered on each side approximately 1 in (25 mm) from the front to the back of the block

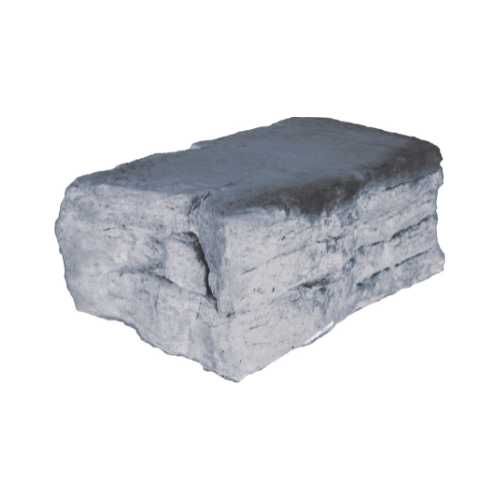

    • Corner blocks are finished on three sides, the fourth side is tapered to fit with the wall blocks
    • Corner blocks can be used to construct columns, create finished ends for walls, and make 90° corners
    • Belvedere caps and coping available to coordinate with wall product

  • Spec Sheets

    Product Spec Sheet

    Belvedere Specifications

  • Design Files

    Sketchup Models.zip

    Quick Installation Tips

Colors

SADDLE MOUNTAIN

Portraits of people from around the globe
Button

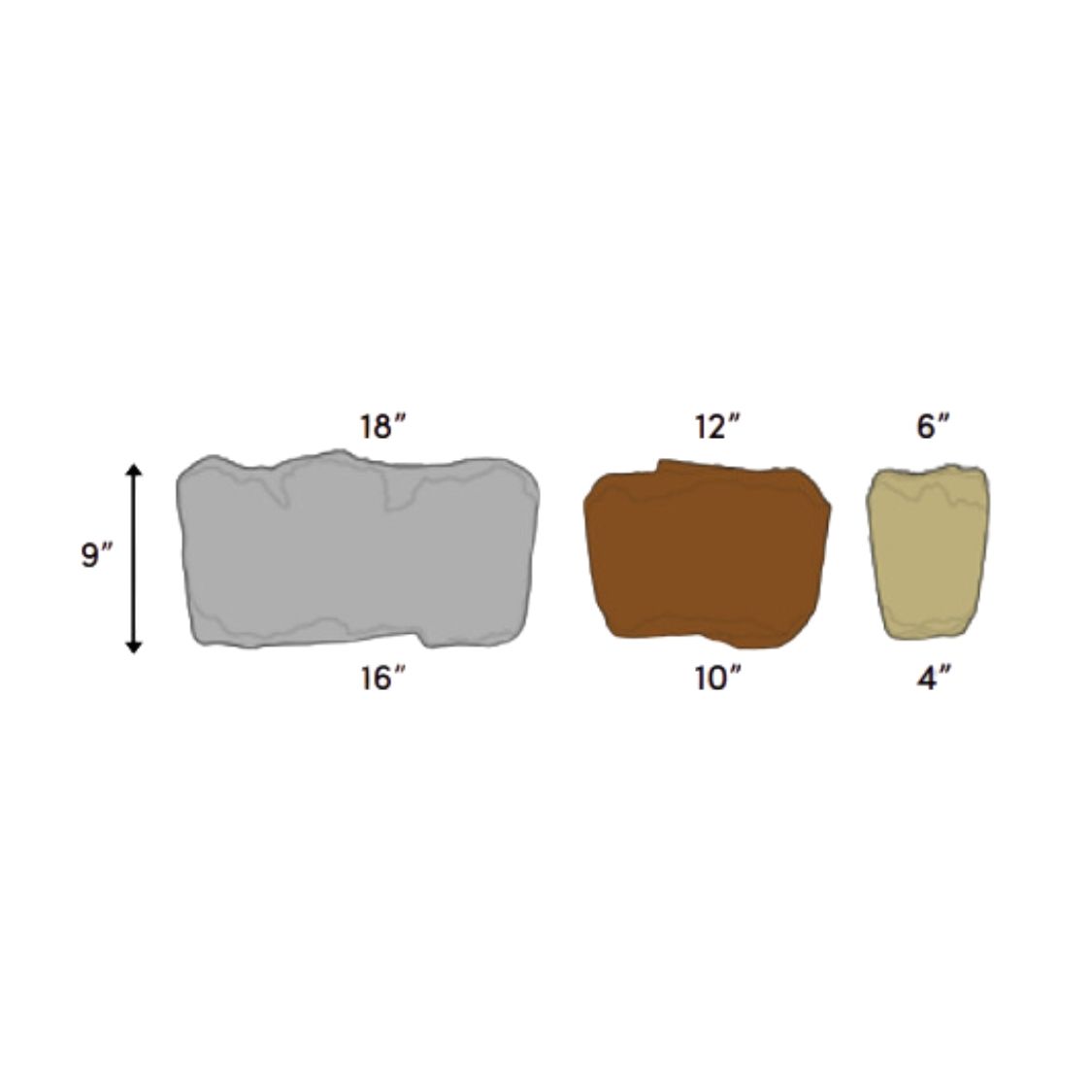

Design and Sizing

AB CLASSIC

Button

Packaging

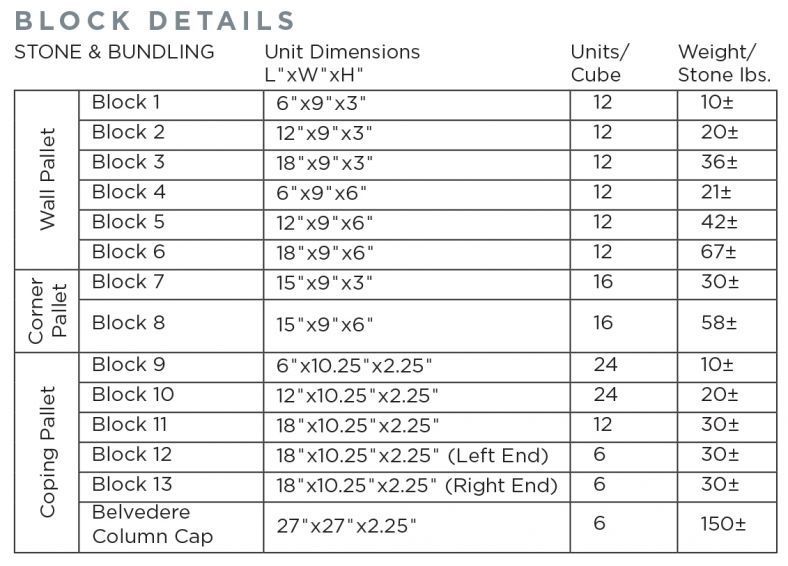

ROSETTA BELVEDERE WALL MATERIAL Sold By Dimensions Weight Coverage Weight/ Full Pallet Stock Colors

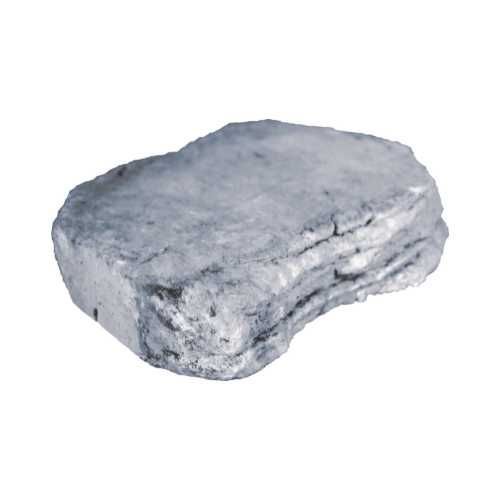

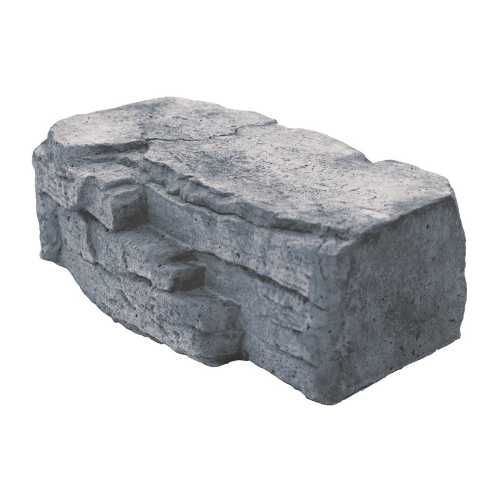

WALL MATERIAL Full Pallet 3" and 6" x 9" x 4" /10" /16" All sizes packaged together 27 SF 2,475 LBS Saddle Mountain, Seneca Blend

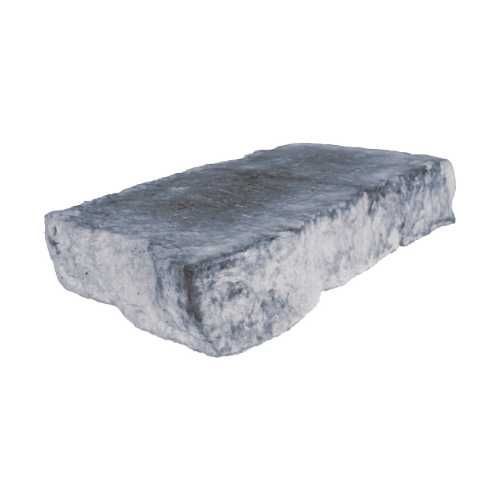

CORNER Full Pallet One pallet = 3' column All sizes packaged together 24 SF 1,520 LBS Saddle Mountain, Seneca Blend

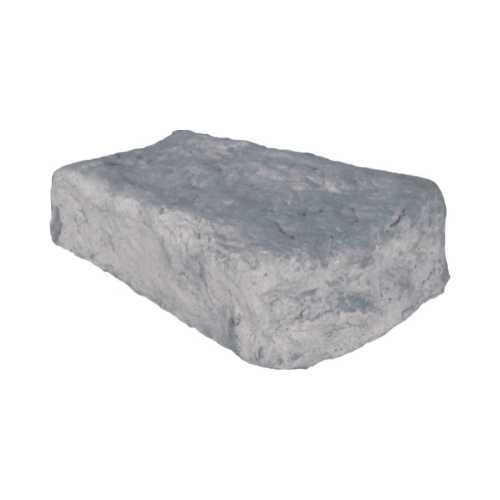

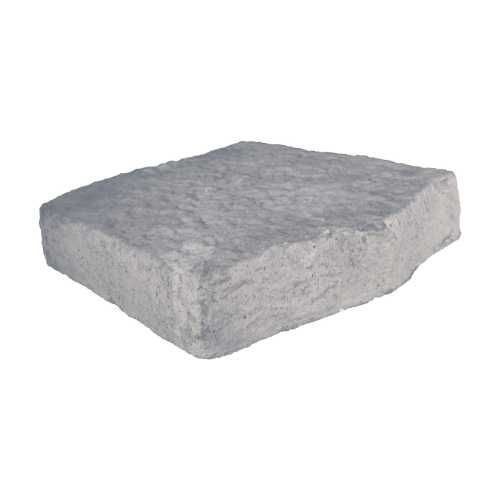

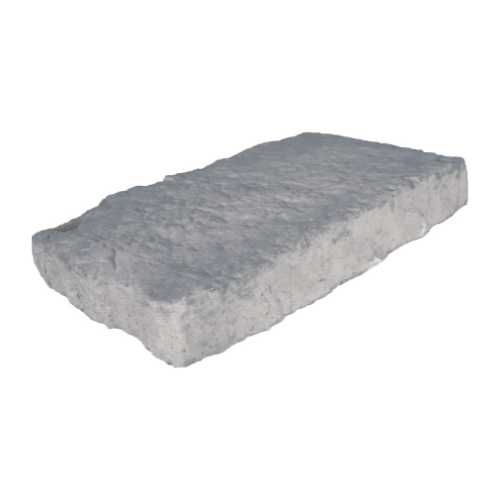

COPING The layer - 11 LF / Layer 2.25"H x 10.25"D x Various Lengths 66 LF 1,550 LBS

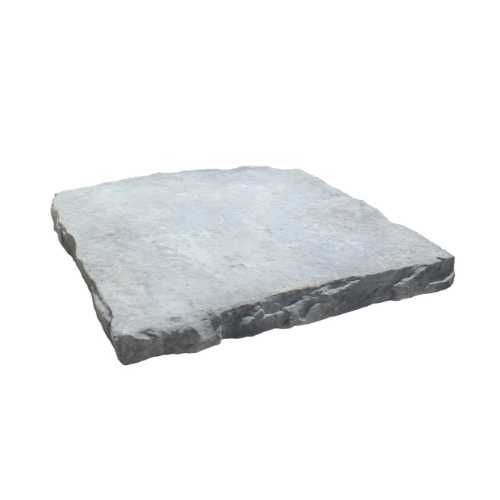

COLUMN CAP Sold by the each 2" x 27" x 27" 8 PCS 1,200 LBS
