ArchiSlab Elite
Pavers
Description

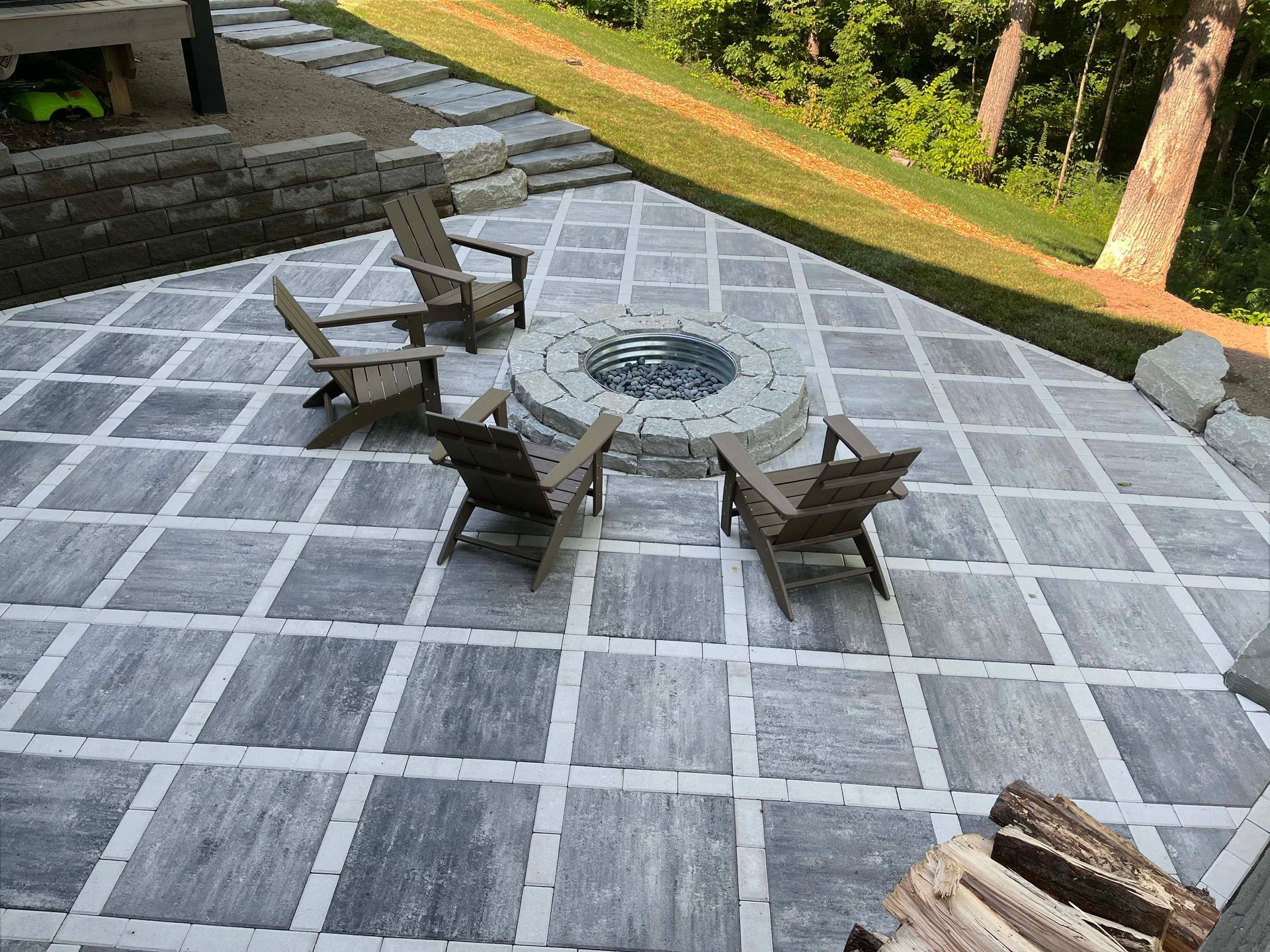

PaverLock® Elite ArchiSlab pavers offer a modern look for courtyards, plazas, patios, and rooftops. Crafted with advanced face-mix technology, these large-scale pavers ensure durability and can be installed using traditional methods or a pedestal system. A stylish addition to the PaverLock Elite line, they blend innovation with contemporary design.
Appearance:
• Edge Detail - Microbevel
• Surface Texture - Smooth
• Joint Spacing - 0 mm
Technologies:
• Face Texture - Elite Face-Mix Technology
Technical Information:
• Conforms to ASTM C1782
• Eligible for LEED v4.1 credits
Applications:
• Pedestrian
• Pedestal Set/ Rooftop
Installation Methods:
• Hand
• Vacuum
Spec Sheets
Design Files

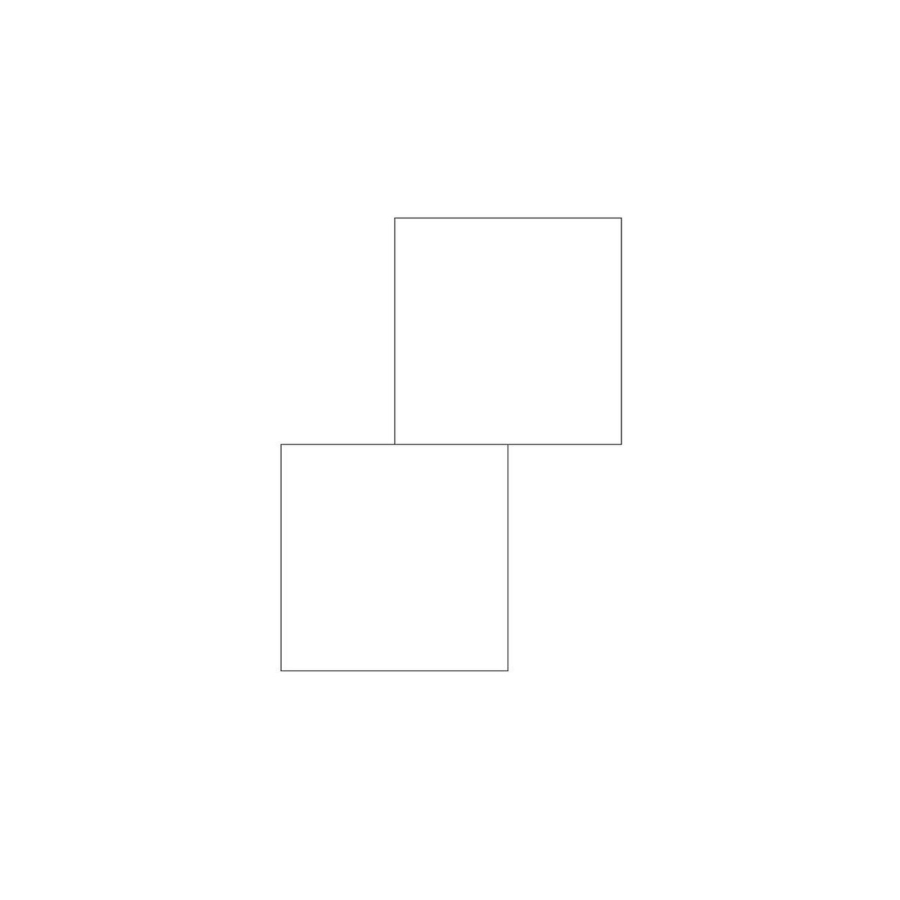

Patterns
Packaging
| ARCHISLAB ELITE (smooth top, no lug) | Dimensions | Pieces / SF per layer / Pallet | Pieces/ Layers/ SF per pallet | Weight/ Full Pallet |
|---|---|---|---|---|

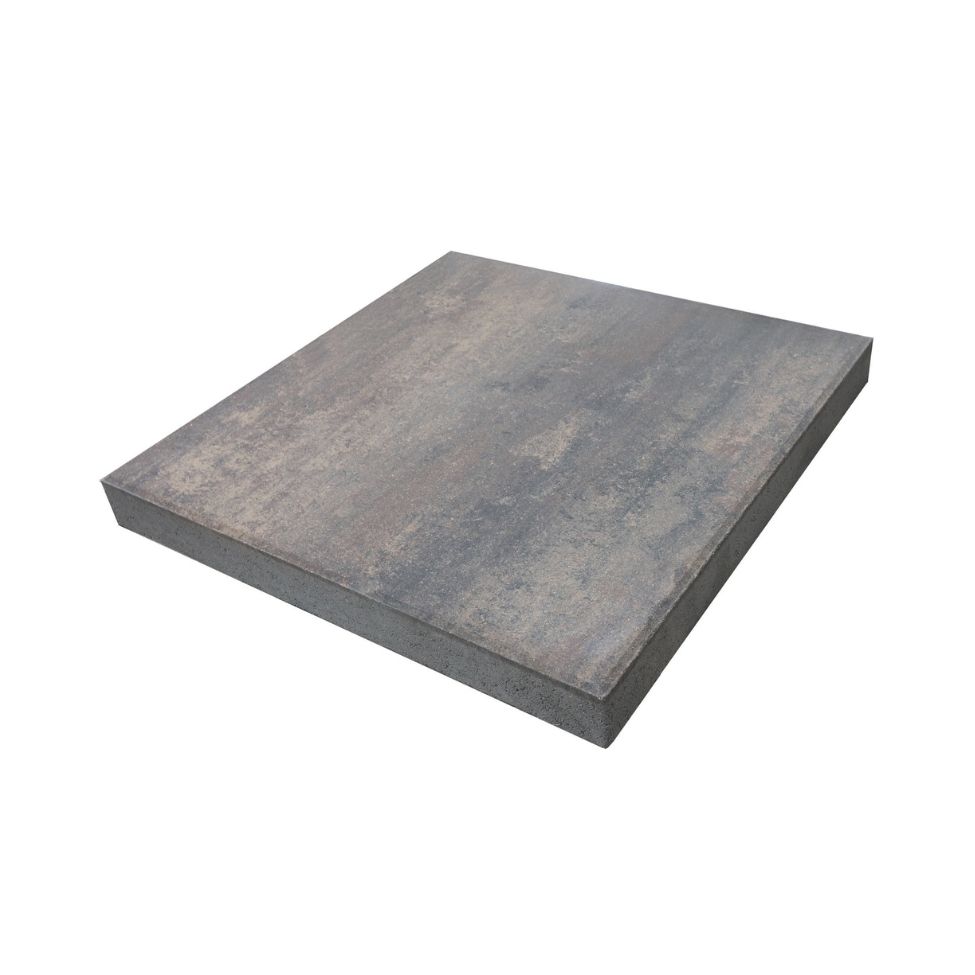

| ArchiSlab Elite (sold by the each) | 24" x 24" | 16 SF per layer | 4 pcs/ layer | 8 layers/ pallet = 128 SF | 3,590 LBS |

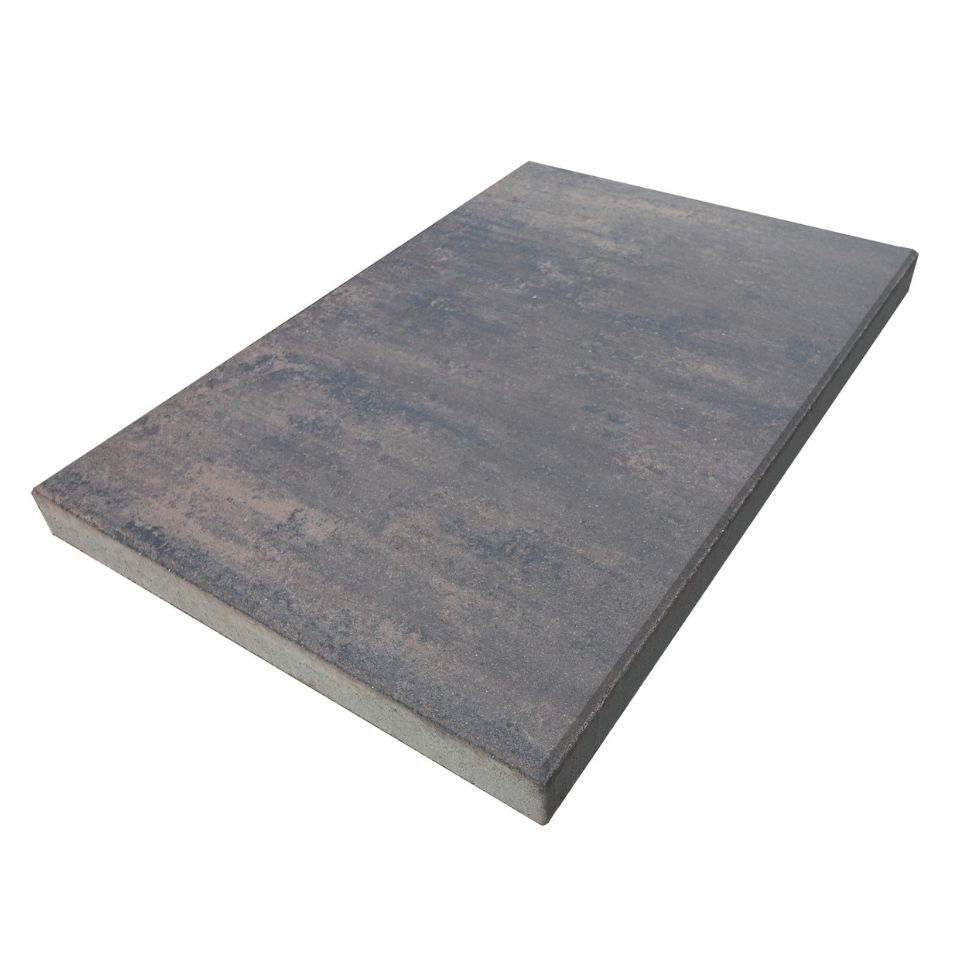

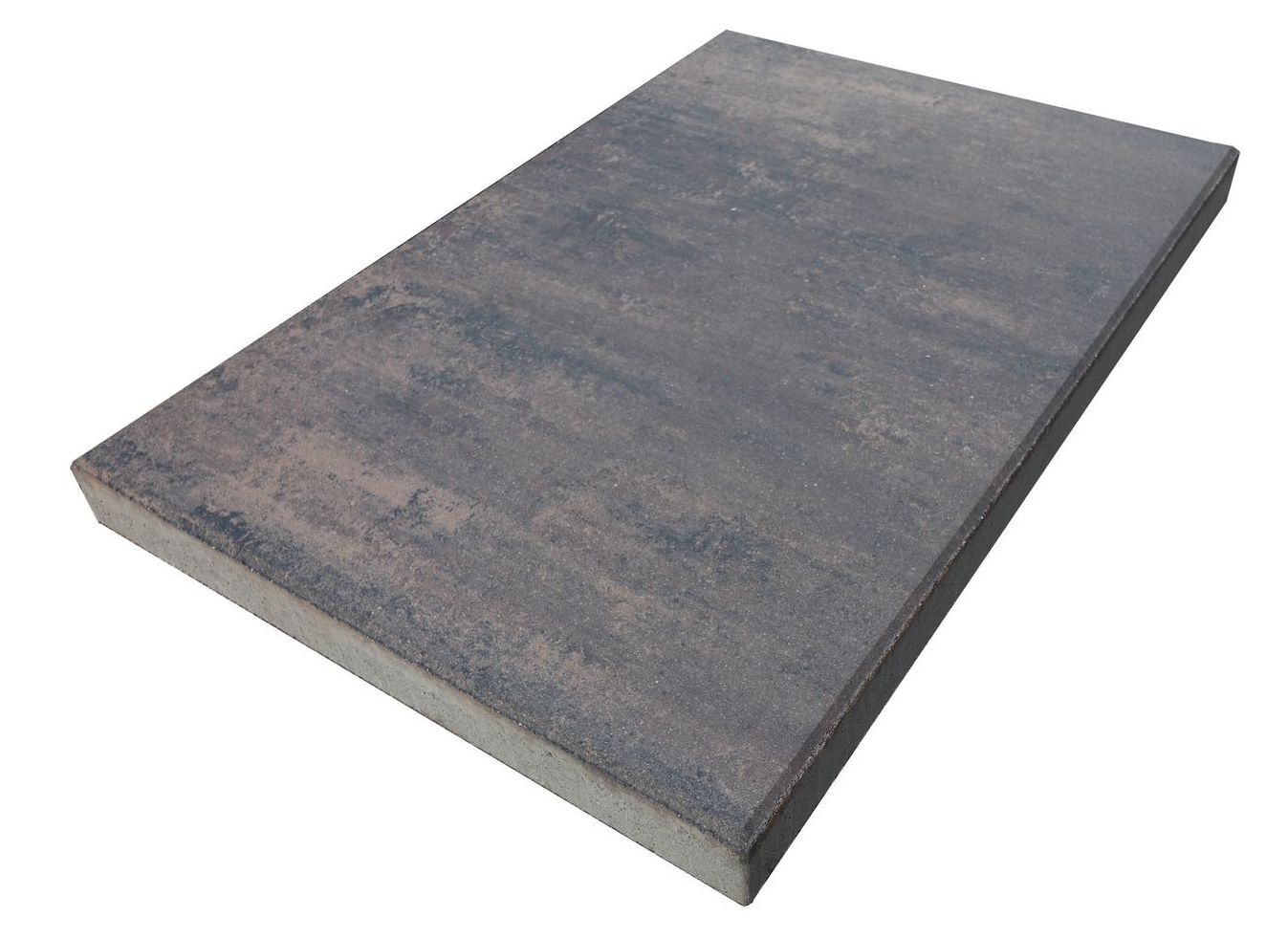

| ArchiSlab XL Elite (sold by the each) | 24" x 36" | 12 SF per layer | 2 pcs/ layer | 8 layers/ pallet = 96 SF | 2,693 LBS |
