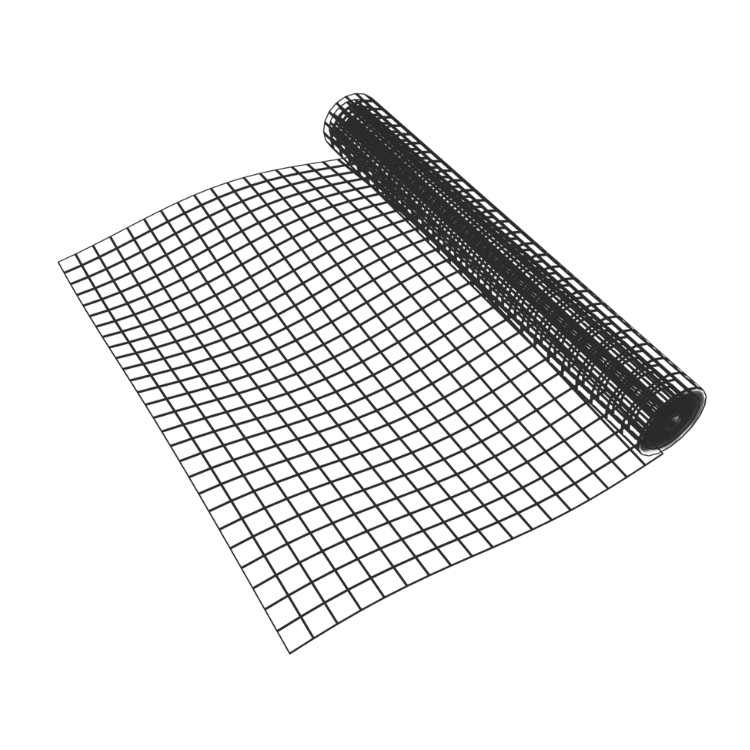

The AB Reinforcement Grid™ is a high-strength polyester mesh geogrid coated with a black protective film. Designed to reinforce the soil behind retaining walls, it adds extra strength and stability. This lightweight grid is produced by Strata Systems, a global leader in geosynthetics, and is exclusively available through the Allan Block Dealer Network. Find a dealer near you. The AB Reinforcement Grid is specifically engineered for Allan Block retaining walls up to 6ft (1.8m) in height, offering an easy and effective solution for the landscape retaining wall market.

It's Simple:

Grid rolls are biaxial and are designed to simply "roll out" along the wall. Detailed guidelines on every roll.

It's Convenient:

Packaged in easy to handle plastic bags. Available in two sizes:

• 3 ft x 50 ft (1 m x 15.2 m)
• 4 ft x 50 ft (1.2 m x 15.2 m)

It's Reliable:

Fully engineered to deliver the strength your landscape retaining wall needs.

• Landscape retaining walls

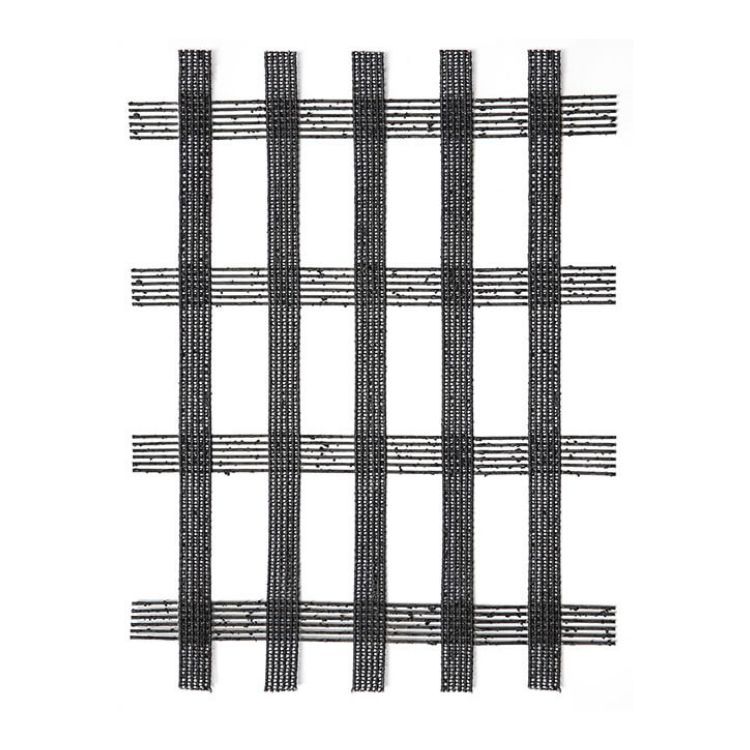

StrataGrid® is a high-performance soil reinforcement product made from strong polyester yarns. The yarns are knitted into a stable grid, providing tensile reinforcement in both vertical and horizontal directions. Coated with a black saturation layer, StrataGrid offers enhanced durability and protection in any environment.

• Low-gloss
• Vibrant color enhancer
• Joint stabilizer
• Film former
• Easier to clean and maintain
• Solvent-based
• Rain-safe after 90 minutes
• Works between 60°F (16°C) and 85°F (29°C)
• Helps resist corrosion from de-icing salt, ultraviolet rays effects, motor oil and grease stains

• Landscape retaining walls

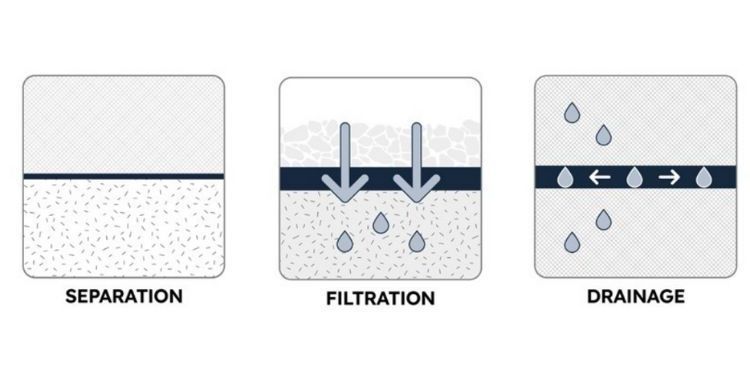

Mirafi 140N is a high-performance geotextile fabric built to endure the toughest conditions. Engineered for maximum strength and abrasion resistance, this fabric can withstand installation and application stresses, making it an ideal choice for long-term drainage solutions.

With exceptional puncture and tear resistance, Mirafi 140N ensures durability even in aggressive environments. Its chemical stability adds extra protection, ensuring your project’s success for years to come.

Perfect for use in demanding applications, Mirafi 140N provides the reliability you need to keep your drainage systems performing at their best.

• High permittivity properties provide high water flow rates and excellent soil retention.
• Chemically stable for performance in a wide range of aggressive environments.
• Provide a cost-effective alternative to graded aggregate filters.
• Conforms easily to the ground or trench surface for trouble-free installation.

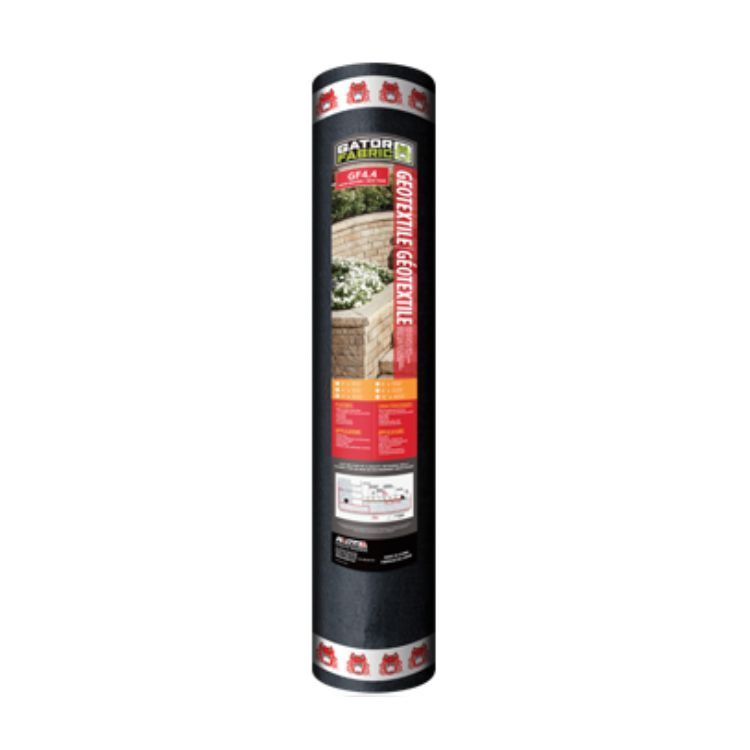

GATOR FABRIC GF4.4 – High-Performance Geotextile for Drainage & Filtration

Durable & Reliable

GATOR FABRIC GF4.4 (100 lbf) is a non-woven, needle-punched geotextile made from strong polypropylene fibers, designed for long-lasting performance.

Superior Drainage & Filtration

With a water flow rate of 135 gallons per minute per square foot (613 L/min/sq. m.), it effectively manages drainage in paver and retaining wall applications.

Soil Separation & Stability

Its high-strength filament fibers prevent soil mixing while enhancing drainage, ensuring a stable foundation for your project.

Built to Last

Resistant to most soil chemicals and non-biodegradable, GATOR FABRIC GF4.4 combines excellent physical and hydraulic properties for superior durability.

• Specially treated to be hydrophilic, it allows high-water flow (135 Gal/min/sq. ft. (613 L/min/sq. m.))
• Drainage and filtration
• Soil separation
• Erosion control
• UV-Resistance
• Inert to soil chemicals (Alkalis, Acids)
• Inert to biological degradation
• Easy to handle
• High strength/dimensionally stable

• Drainage control
• Protection against erosion
• Behind retaining walls
• Paver sub base foundation
• Gator Base foundation application
• General landscape
• Soil separation
